10142344-108KLF

Name: Amphenol 10142344-108KLF
Brand: Amphenol FCI
SKU: 649-10142344-108KLF
Price: 2.07 USD
Availability: InStock

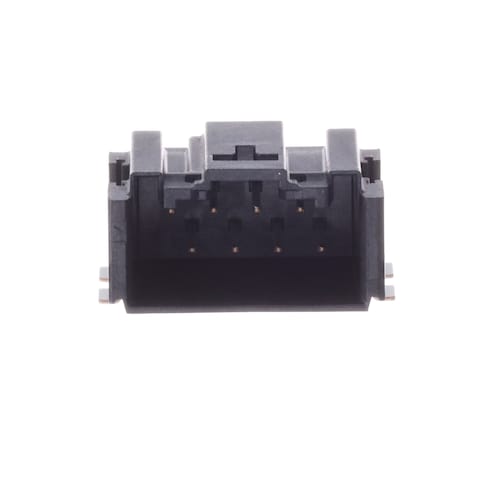

Images are for reference only
See Product Specifications

Mouser No:

649-10142344-108KLF

Mfr. No:

10142344-108KLF

Mfr.:

Amphenol FCI

Description:

Headers & Wire Housings MICROSPACE HEADER-ASSY STG TL

Datasheet:

10142344-108KLF Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol FCI 10142344-108KLF

In Stock: 965

Stock:: 965

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 780
Factory Lead Time:: 18

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 260)

Cut Tape

MouseReel™ (+$7.00)

Pricing (USD)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	$2.07	$2.07
	$1.76	$17.60
Full Reel (Order in multiples of 260)
	$1.61	$418.60
	$1.47	$764.40
	$1.27	$990.60
	$1.18	$2,761.20
	$1.13	$5,582.20

† A MouseReel™ fee of $7.00 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	8 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	2.43 mm (0.096 in)
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	Minitek MicroSpace 1.27mm
Tradename:	Minitek MicroSpace
Application:	Wire-to-Board
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 130 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Amphenol FCI
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	FR
Current Rating:	4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Thermoplastic (TP)
Insulation Resistance:	100 MOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	260
Subcategory:	Headers & Wire Housings
Voltage Rating:	48 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

10142344-108KLF Datasheet (PDF)

Models

10142344-108KLF Symbol & Footprint by SnapMagic

This functionality requires JavaScript to be enabled.

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Minitek® Connectors

Amphenol FCI Minitek® connectors consist of modular board-to-board connectors that are suitable for parallel, perpendicular and coplanar applications. These signal connectors are available in 0.80mm, 1.00mm, 1.27mm, 1.50mm and 2.00mm pitches. The stackable unshrouded and shrouded headers come in through-mount, surface-mount and pin-in-paste versions. Amphenol FCI Minitek Connectors are customisable in terms of stack heights and the number of available positions.

MicroSpace™ Connector System

Amphenol FCI MicroSpace™ Connector System is designed based on a crimp-to-wire platform that enables LV214 severity-2 with pitches of 1.27mm, 1.50mm, and 1.80mm. These connectors are customizable in terms of stack heights and the number of positions. The MicroSpace system is available in single- and double-row versions, with top- or side-latch configurations. This solution resists high vibration and offers current ratings of up to 4A per contact and terminal positioning assurance (TPA). Other features include a design based on existing and proven controls and poka-yoke polarization. Amphenol FCI MicroSpace Connector System is ideal for applications such as automotive, cameras, sensors, navigation, HVACs, headliners, lighting, power steering, and radios/DVDs.
