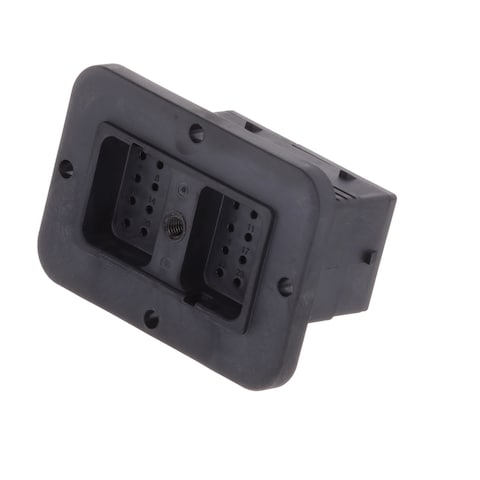

ARC12-24PC

Name: Amphenol ARC12-24PC
Brand: Amphenol SINE Systems
SKU: 654-ARC12-24PC
Price: 16.47 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-ARC12-24PC

Mfr. No:

ARC12-24PC

Mfr.:

Amphenol SINE Systems

Description:

Automotive Connectors 24 Position Receptacle, Pin Contact, Size 16, Threaded Insert for Jackscrew, Keyed C, Flanged, Black, Dustcap included

Datasheet:

ARC12-24PC Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems ARC12-24PC

In Stock: 106

Stock:: 106 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$16.47	$16.47
	$15.06	$150.60
	$14.76	$295.20
	$12.91	$645.50
	$12.71	$1,271.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Sockets
Number of Positions:	24 Position
Mounting Style:	Panel Mount
Termination Style:	Crimp
Series:	ARC
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	13 A
Housing Gender:	Receptacle
Housing Material:	Thermoplastic (TP)
Insulation Resistance:	1 GOhms
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	100
Subcategory:	Automotive Connectors
Tradename:	ARC Series
Voltage Rating:	250 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

USHTS:: 8538908180
ECCN:: EAR99

ARC Series™ Connectors

Amphenol Sine Systems ARC Series™ Connectors are rugged, environmentally sealed, rectangular connectors ideal for high pin-count applications in controlled and/or uncontrolled environmental conditions. These heavy-duty, thermoplastic connectors are available in 24, 40, 50, or 70 positions and feature bonded front seals on the plugs. The Amphenol ARC series connectors are available as in-line plugs and flange-mount receptacles with A, B, C, and D keying options. Some of the applications include transportation, agriculture, marine, alternative energy, demanding interconnect architectures, and more.
