AT11-VCLIP

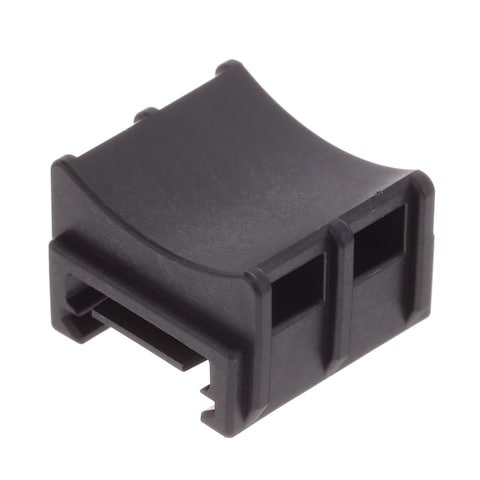

Name: Amphenol AT11-VCLIP
Brand: Amphenol SINE Systems
SKU: 654-AT11-VCLIP
Price: 0.85 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-AT11-VCLIP

Mfr. No:

AT11-VCLIP

Mfr.:

Amphenol SINE Systems

Description:

Automotive Connectors ZIP TIE ATTACH CLIP FOR SELECTED RCPTS

Datasheet:

AT11-VCLIP Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems AT11-VCLIP

In Stock: 7,633

Stock:: 7,633

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 3,655
Factory Lead Time:: 18

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.85	$0.85
	$0.748	$7.48
	$0.693	$17.33
	$0.66	$66.00
	$0.614	$153.50
	$0.59	$295.00
	$0.561	$561.00
	$0.56	$1,120.00
	$0.547	$2,735.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Accessories
Accessory Type:	Clip
Color:	Black
Series:	AT
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Material:	Thermoplastic (TP)
Mating Part Number:	AT04-2P/3P/4P/6P/12P, ATM04-2P thru 12P, ATP04-2P/4P
Product Type:	Automotive Connectors
Factory Pack Quantity:	1000
Subcategory:	Automotive Connectors
Unit Weight:	3 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AT11-VCLIP Datasheet (PDF)

Models

3D CAD Model

Product Catalogs

This functionality requires JavaScript to be enabled.

CNHTS:: 8538900000
USHTS:: 3926909989
ECCN:: EAR99

AT Series™ Connectors

Amphenol Sine Systems AT Series™ connectors are a high-performance, thermoplastic, cost-effective solution with superior environmental seals and seal retention capabilities with IP68 and IP69K ratings (in mated condition). The connector design incorporates an integrated latching system with over-sized detents that ensure a definitive electrical and mechanical connection. All AT Series connectors offer a wide range of end caps and strain relief options and have been developed to be comparable with all other existing standard products industry-wide. The connectors are available in BoardLock™, HYPERBUSS™, LED, PanelMate™, and StructurePlus™ options.

ATP Series™ Connectors

Amphenol Sine Systems ATP Series™ Connectors offer an IP68- and IP69K-rated (mated), high-performance, thermoplastic solution with superior environmental seals and seal retention capabilities. These connectors are designed for use with 14AWG to 10AWG wire range with size 12 contacts and handle up to 25A. The components are available in BoardLock™, StructurePlus™, HYPERBUSS™, PanelMate™, and SR01/02 options. Amphenol ATP Series™ connectors are engineered to be completely compatible with other existing standard products industry-wide. These connectors are used in heavy equipment, agriculture, marine, automotive, and alternative energy applications.

A Series™ Connectors

Amphenol Sine Systems A Series™ family of sealed, heavy-duty, multi-pin plastic and metal connectors is made up of 20+ core product lines. The connectors within this family have been developed as a high-performance, cost-effective solution for use with heavy equipment, agricultural, automotive, military, alternate energy, and other demanding interconnect architectures. The A Series Family bridges the gap between controlled and harsh environmental conditions to keep users connected.

PanelMate™ AT/ATP Connectors

Amphenol Sine Systems AT/ATP PanelMate™ Receptacles combine flange mounting options with the proven reliability of the AT Series™ and the ATP Series™ IP68/69K rated (mated), environmentally sealed, thermoplastic connection systems. Engineered with a one-piece sealed flange design for rapid and secure mounting, the receptacles utilize a durable high-temperature silicone facial seal to provide a barrier of protection from lubricating oils, hydraulic fluids, and fossil fuels. These features allow the PanelMate™ Receptacles to withstand harsh environment applications.

BoardLock™ Connectors

Amphenol Sine Systems BoardLock™ connector family combines flanged or flangeless, 180° straight or 90° right-angle pin-oriented, wire-to-board versatility with the proven reliability of the A Series™. The A Series is an environmentally sealed thermoplastic connection system with a maximum current rating up to 100A. Featuring a compact, durable, low-profile, and lightweight design, this connector family is perfect for power or data signal applications. All BoardLock product lines accept A Series components and are comparable with other industry-standard mating connectors.
