AD-HQM-QCM-PM-2.5

Name: Amphenol AD-HQM-QCM-PM-2.5
Brand: Amphenol Times Microwave Systems
SKU: 523-ADHQMQCMPM25
Price: 269.41 USD
Availability: InStock

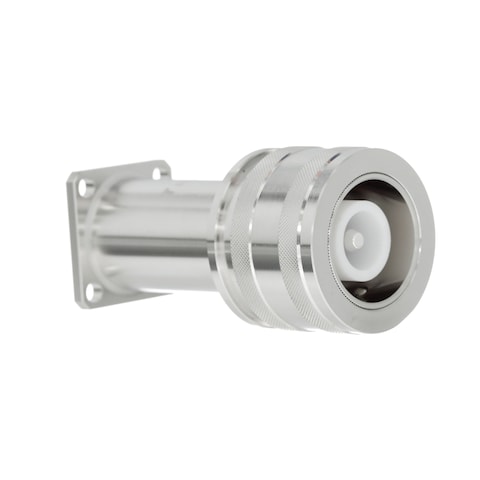

Images are for reference only
See Product Specifications

Mouser No:

523-ADHQMQCMPM25

Mfr. No:

AD-HQM-QCM-PM-2.5

Mfr.:

Amphenol Times Microwave Systems

Description:

RF Adapters - Between Series HPQD male Insta-Change adapter

Datasheet:

AD-HQM-QCM-PM-2.5 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Times Microwave Systems AD-HQM-QCM-PM-2.5

In Stock: 9

Stock:: 9 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

This Product Ships FREE

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$269.41	$269.41
10	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	RF Adapters - Between Series
RoHS:
Side 1 Gender:	Plug (Male)
Side 1 Polarity:	Normal
Side 2 Gender:	Plug (Male)
Side 2 Polarity:	Normal
Maximum Frequency:	2.5 GHz
Adapter Style:	Male to Male
Contact Plating:	Gold
Brand:	Amphenol Times Microwave Systems
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Frequency Range:	2.5 GHz
Product Type:	RF Adapters - Between Series
Subcategory:	RF Adapters

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AD-HQM-QCM-PM-2.5 Datasheet (PDF)

CAHTS:: 8544200000
USHTS:: 8544200000
JPHTS:: 854420000
KRHTS:: 8544200000
BRHTS:: 85442000
ECCN:: EAR99

HPQD™ & MPQD™ Quick Disconnect Connectors

Amphenol Times Microwave Systems HPQD™ and MPQD™ Quick Disconnect Connectors are designed for high-power applications. Featuring a quick-disconnect mechanism, the Amphenol Times Microwave Systems HPQD and MPQD Connectors are compatible with other interfaces. HPQD and MPQD feature DC to 1.0GHz operating frequency, a voltage rating of 2700V_RMS, and 500 mating cycles. The product line includes cable connectors, cable assemblies, receptacles, and adapters with HPQD and MPQD interfaces.
