AD-LCM-QCM-PM-1

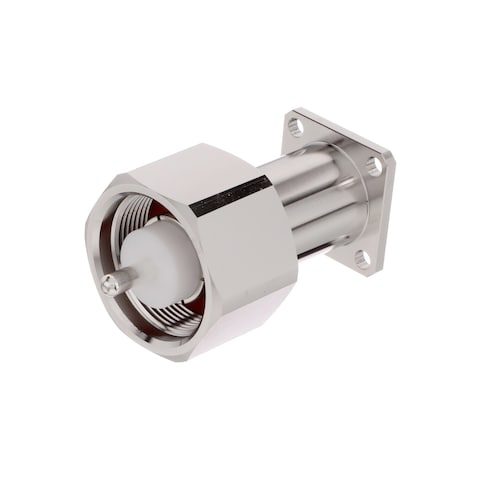

Name: Amphenol AD-LCM-QCM-PM-1
Brand: Amphenol Times Microwave Systems
SKU: 523-ADLCMQCMPM1
Price: 145.99 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-ADLCMQCMPM1

Mfr. No:

AD-LCM-QCM-PM-1

Mfr.:

Amphenol Times Microwave Systems

Description:

RF Adapters - Between Series LC male Insta-Change adapter

Datasheet:

AD-LCM-QCM-PM-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Times Microwave Systems AD-LCM-QCM-PM-1

In Stock: 9

Stock:: 9 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$145.99	$145.99
10	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	RF Adapters - Between Series
RoHS:
Side 1 RF Series:	LC
Side 1 Gender:	Plug (Male)
Side 1 Polarity:	Normal
Side 2 Gender:	Plug (Male)
Side 2 Polarity:	Normal
Maximum Frequency:	1 GHz
Impedance:	50 Ohms
Side 1 Body Style:	Standard
Side 2 Body Style:	Standard
Body Material:	Brass
Contact Plating:	Silver
Brand:	Amphenol Times Microwave Systems
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Mounting Style:	Panel Mount
Orientation:	Straight
Product Type:	RF Adapters - Between Series
Subcategory:	RF Adapters

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AD-LCM-QCM-PM-1 Datasheet (PDF)

CAHTS:: 8535909020
USHTS:: 8535908040
JPHTS:: 853590000
KRHTS:: 8535901000
TARIC:: 8535900089
MXHTS:: 8535909904
BRHTS:: 85359090
ECCN:: EAR99

HPQD™ & MPQD™ Quick Disconnect Connectors

Amphenol Times Microwave Systems HPQD™ and MPQD™ Quick Disconnect Connectors are designed for high-power applications. Featuring a quick-disconnect mechanism, the Amphenol Times Microwave Systems HPQD and MPQD Connectors are compatible with other interfaces. HPQD and MPQD feature DC to 1.0GHz operating frequency, a voltage rating of 2700V_RMS, and 500 mating cycles. The product line includes cable connectors, cable assemblies, receptacles, and adapters with HPQD and MPQD interfaces.
