AD-NF-QCM-PM-2.5

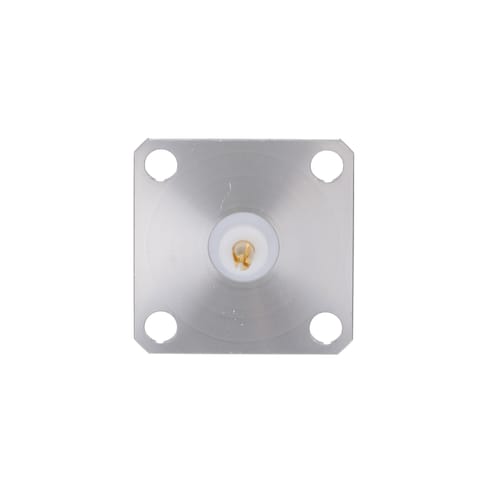

Name: Amphenol AD-NF-QCM-PM-2.5
Brand: Amphenol Times Microwave Systems
SKU: 523-ADNFQCMPM25
Price: 136.48 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

523-ADNFQCMPM25

Mfr. No:

AD-NF-QCM-PM-2.5

Mfr.:

Amphenol Times Microwave Systems

Description:

RF Adapters - Between Series N female Insta-Change adapter

Datasheet:

AD-NF-QCM-PM-2.5 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Times Microwave Systems AD-NF-QCM-PM-2.5

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$136.48	$136.48
10	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	RF Adapters - Between Series
RoHS:
Side 1 RF Series:	N
Side 1 Gender:	Jack (Female)
Side 1 Polarity:	Normal
Side 2 Gender:	Plug (Male)
Side 2 Polarity:	Normal
Maximum Frequency:	2.5 GHz
Impedance:	50 Ohms
Side 1 Body Style:	Standard
Side 2 Body Style:	Standard
Adapter Style:	Female to Male
Body Material:	Brass
Contact Plating:	Gold
Brand:	Amphenol Times Microwave Systems
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Mounting Style:	Panel Mount
Orientation:	Straight
Product Type:	RF Adapters - Between Series
Subcategory:	RF Adapters

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AD-NF-QCM-PM-2.5 Datasheet (PDF)

CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

HPQD™ & MPQD™ Quick Disconnect Connectors

Amphenol Times Microwave Systems HPQD™ and MPQD™ Quick Disconnect Connectors are designed for high-power applications. Featuring a quick-disconnect mechanism, the Amphenol Times Microwave Systems HPQD and MPQD Connectors are compatible with other interfaces. HPQD and MPQD feature DC to 1.0GHz operating frequency, a voltage rating of 2700V_RMS, and 500 mating cycles. The product line includes cable connectors, cable assemblies, receptacles, and adapters with HPQD and MPQD interfaces.
