ADUM4166BRIZ

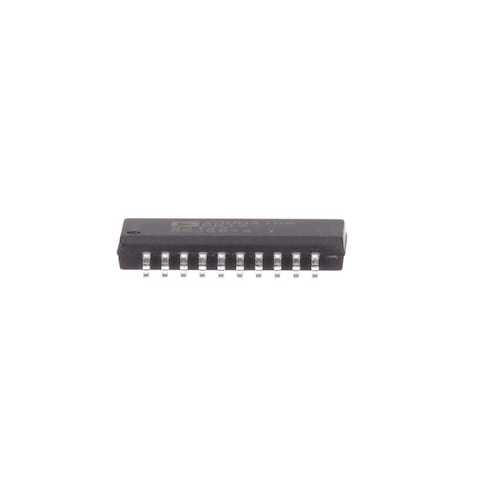

Name: Analog Devices Inc. ADUM4166BRIZ
Brand: Analog Devices
SKU: 584-ADUM4166BRIZ
Price: 17.7 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

584-ADUM4166BRIZ

Mfr. No:

ADUM4166BRIZ

Mfr.:

Analog Devices

Description:

Digital Isolators 5kV 480Mbps USB Dig Isolator Periph

Datasheet:

ADUM4166BRIZ Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Analog Devices ADUM4166BRIZ

In Stock: 234

Stock:: 234 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 26 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$17.70	$17.70
	$16.08	$160.80
	$11.01	$275.25
	$10.17	$945.81

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Analog Devices Inc.
Product Category:	Digital Isolators
RoHS:
Series:	ADUM4166
Mounting Style:	SMD/SMT
Package/Case:	SOIC-20
Number of Channels:	4 Channel
Polarity:	Bidirectional
Data Rate:	480 Mb/s
Isolation Voltage:	5700 Vrms
Isolation Type:	Capacitive Coupling
Supply Voltage - Max:	3.6 V
Supply Voltage - Min:	3 V
Operating Supply Current:	48 mA
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Analog Devices
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Maximum Fall Time:	350 ns
Maximum Rise Time:	350 ns
Moisture Sensitive:	Yes
Pd - Power Dissipation:	2.5 W
Product:	Digital Isolators
Product Type:	Digital Isolators
Shutdown:	No Shutdown
Factory Pack Quantity:	31
Subcategory:	Interface ICs
Type:	RMS Digital Isolator

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ADUM4166BRIZ Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8542399000
CAHTS:: 8542390000
USHTS:: 8542390090
TARIC:: 8542399000
MXHTS:: 8542399999
ECCN:: EAR99

Interface & Isolation ADI SLP

ADuM4165 & ADuM4166 USB 2.0 Port Isolators

Analog Devices Inc. ADuM4165 and ADuM4166 USB 2.0 Port Isolators utilize iCoupler® technology to dynamically support all USB 2.0 data rates, low (1.5 Mbps), full (12 Mbps), or high (480 Mbps), as required. The ADUM4165 and ADUM4166 support host isolation with automatic speed negotiation as well as peripheral isolation. High-speed data is retimed for jitter reduction, requiring an external clock signal or crystal input. The ADuM4165 supports the clock or crystal input on the upstream side, and the ADuM4166 supports the clock or crystal input on the downstream side, offering two options to best suit the system design. Analog Devices Inc. ADuM4165 and ADuM4166 USB 2.0 Port Isolators are housed in a SOIC-20 wide-body package and feature a -55°C to +125°C operating temperature range.
