12047957-L

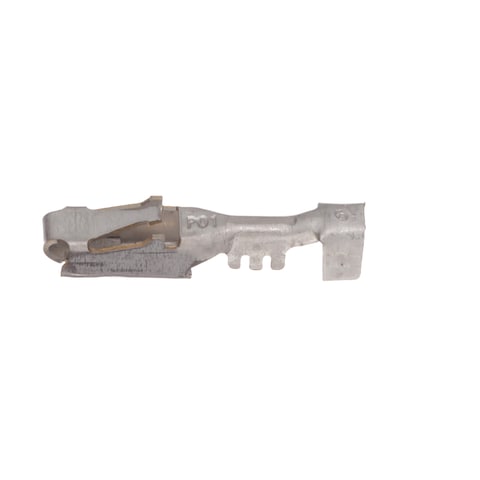

Name: Aptiv 12047957-L
Brand: Aptiv (formerly Delphi)
SKU: 829-12047957-L
Price: 1.02 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

829-12047957-L

Mfr. No:

12047957-L

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors TERM M/P 280 F SN PLTD UNSLD

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 12047957-L

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 28 Weeks Estimated factory production time.

Long lead time reported on this product.

Enter Quantity:

Minimum: 2500 Multiples: 250

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

This Product Ships FREE

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.02	$2,550.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Terminals
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Plating:	Tin
Wire Gauge Min:	20 AWG
Wire Gauge Max:	17 AWG
Series:	Metri-Pack 280
Packaging:	Bulk
Brand:	Aptiv (formerly Delphi)
Cable Diameter/Insulation Range:	0.8 mm
Contact Type:	Socket
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Description/Function:	M/P 280 Terminals
Locking Mechanism:	Locking Lance
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	250
Subcategory:	Automotive Connectors
Tradename:	Metri-Pack
Wire Gauge Range:	17 AWG to 20 AWG
Unit Weight:	3 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images

Drawing (PDF)

CNHTS:: 8538900000
CAHTS:: 8544200000
USHTS:: 8544200000
JPHTS:: 8544200000
TARIC:: 8544200090
MXHTS:: 85442099
ECCN:: EAR99

Metri-Pack 280 Connectors

Aptiv (formerly Delphi) Metri-Pack 280 Connectors provide a 30A continuous maximum current rating and standard ISO 2.8mm configuration. The 280 series connectors have a 2.8mm blade width, 5mm or 7.7mm centerline spacing, and 0.35mm² to 5mm² cable range. They offer <10mΩ @ 20mV resistance and an operating temperature range of -40°C to +125°C. They feature low energy and low voltage capabilities as well as excellent resistance to temperatures, chemicals, and abrasion. Aptiv Metri-Pack 280 Connectors are designed to meet or exceed the requirements for most marine, appliance, and industrial control applications.

Metri-Pack Connectors

Aptiv Metri-Pack Connectors are a family of electrical connection systems that offer design flexibility and application versatility. The connectors are resistant to extreme temperatures, chemicals, and abrasion. They utilize Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) for superior connection reliability. Strong, stable terminals ensure correct alignment. Aptiv Metri-Pack Connectors are designed for low-energy electronic circuits or power circuit applications, including as high-performance interconnects in sealed or unsealed versions, environmentally sealed electronic headers, junction blocks, electrical centers, and much more.
