PVHC4F23SS314

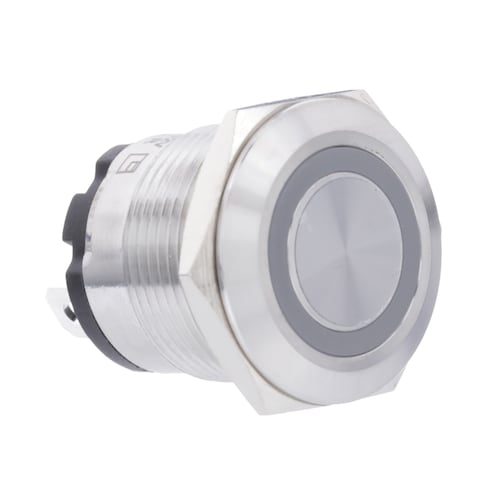

Name: E-Switch PVHC4F23SS314
Brand: E-Switch
SKU: 612-PVHC4F23SS314
Price: 17.44 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

612-PVHC4F23SS314

Mfr. No:

PVHC4F23SS314

Mfr.:

E-Switch

Description:

Pushbutton Switches

Datasheet:

PVHC4F23SS314 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about E-Switch PVHC4F23SS314

In Stock: 46

Stock:: 46

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 40
Factory Lead Time:: 15

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$17.44	$17.44
	$15.16	$151.60
	$13.24	$529.60
	$12.91	$1,549.20
	$12.22	$3,421.60
	$11.97	$6,224.40

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	E-Switch
Product Category:	Pushbutton Switches
Series:	PVHC4
Contact Form:	SPST
Mounting Style:	Panel Mount
Switch Function:	OFF - ON
Illumination Colour:	Red
Current Rating:	500 mA, 2 A
Voltage Rating AC:	250 VAC
IP Rating:	IP67
Termination Style:	Solder Lug
Contact Plating:	Silver
Brand:	E-Switch
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Maximum Operating Temperature:	+ 55 C
Minimum Operating Temperature:	- 25 C
Product Type:	Pushbutton Switches
Factory Pack Quantity:	40
Subcategory:	Switches
Unit Weight:	2.722 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

PVHC4F23SS314 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536500090
USHTS:: 8536509035
KRHTS:: 8536502000
ECCN:: EAR99

PVHC4 Anti-Vandal Pushbutton Switches

E-Switch PVHC4 Anti-Vandal Pushbutton Switches are IP67-rated switches with a high current rating of 20A, 250V_AC, and 25A, 30V_DC. These switches offer durability, security, multiple function options, and the potential for ring and power symbol illumination. The PVHC4 anti-vandal switches feature a 19mm diameter panel cutout, stainless steel or black anodized body finish, and 50,000 cycles of electrical life. These switches also feature 1500V_AC dielectric strength, 100mΩ maximum contact resistance, 100MΩ insulation resistance, and a -40°C to 85°C operating temperature range. Typical applications include kiosks, electrical housewares, security devices, medical equipment, and industrial controls.
