M83513/01-EN

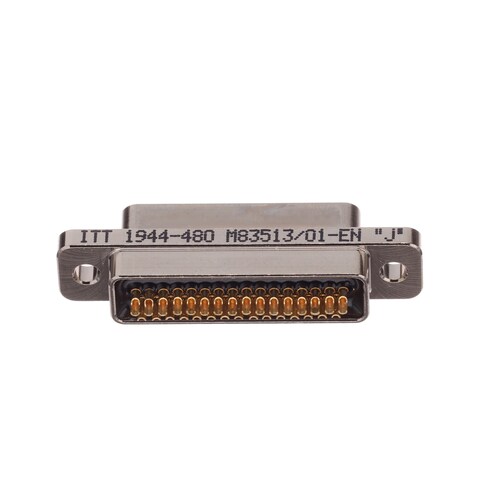

Name: ITT Cannon M83513/01-EN
Brand: ITT Cannon
SKU: 965-M83513/01-EN
Price: 133.96 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

965-M83513/01-EN

Mfr. No:

M83513/01-EN

Mfr.:

ITT Cannon

Description:

D-Sub Mil Spec Connectors MICRO 31 PIN SOD A174

Datasheet:

M83513/01-EN Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about ITT Cannon M83513/01-EN

In Stock: 7

Stock:: 7

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 10
Factory Lead Time:: 16

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$133.96	$133.96
	$121.97	$1,219.70
	$116.72	$2,918.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	ITT Cannon
Product Category:	D-Sub Mil Spec Connectors
RoHS:
Product:	Microminiature Connectors
Gender:	Male
Number of Positions:	31 Position
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Contact Plating:	Gold
Mounting Style:	Panel
Shell Size:	E
Series:	Micro
Brand:	ITT Cannon
Contact Material:	Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	3 A
Insulation:	Insulated
Insulation Material:	Liquid Crystal Polymer (LCP)
Product Type:	D-Sub MIL Spec Connectors
Shell Material:	Aluminum
Shell Plating:	Nickel
Factory Pack Quantity:	1
Subcategory:	MIL-Spec / MIL-Type
Tradename:	MIL-DTL-83513
Type:	Plug Connectors
Part # Aliases:	154178-0009

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
BRHTS:: 85366990
ECCN:: EAR99

MIL-DTL-83513 Connectors

ITT Cannon MIL-DTL-83513 Connectors provide a high-density, lightweight, field-proven twist pin contact design. These connectors feature a 3A maximum current rating and 8mΩ maximum contact resistance. The MIL-DTL-83513 connector shell material is made of aluminum, and the contact material is made of gold-plated copper alloy. These ITT Cannon connectors are RoHS compliant and available in 9, 15, 21, 25, 31, 37, 51, and 100 shell sizes. Typical applications include avionics gear, communications equipment and satellites, medical, military, aerospace launch vehicles, oil and gas exploration, and industrial automation.
