171971-0002

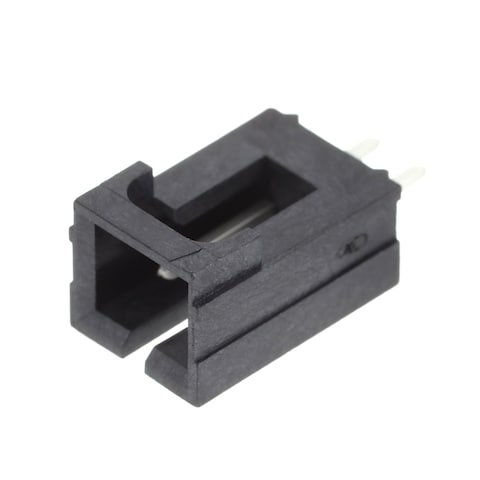

Name: Molex 171971-0002
Brand: Molex
SKU: 538-171971-0002
Price: 0.81 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-171971-0002

Mfr. No:

171971-0002

Mfr.:

Molex

Description:

Headers & Wire Housings SL Hdr Sngl Row Vert Shroud TH 2CKT

Datasheet:

171971-0002 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 171971-0002

In Stock: 8,245

Stock:: 8,245 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 25 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.812	$0.81
	$0.751	$7.51
	$0.668	$16.70
	$0.639	$63.90
	$0.593	$148.25
	$0.544	$272.00
	$0.512	$512.00
	$0.499	$1,247.50
	$0.466	$1,610.50

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	2 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	6.1 mm (0.24 in)
Termination Post Length:	3.3 mm (0.13 in)
Series:	171971
Tradename:	SL
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tube
Brand:	Molex
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	3 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Thermoplastic (TP)
Latching Type:	Friction Lock
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	3456
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 V
Part # Aliases:	1719710002 01719710002
Unit Weight:	510 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

PCN

Specification Sheets

Product Specification (PDF)

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

SL Modular Connectors

Molex SL (Stackable Linear) Modular Connectors include surface mount headers for low-power and signal wire-to-board and wire-to-wire applications. The comprehensive SL Modular Connector System includes two independent points of contact, a positive lock that secures retention between headers and receptacles, and a 2.54mm pitch. These connectors and assemblies provide ideal wire-to-wire solutions and supports a range of wire-to-board applications. Molex SL Modular Connectors are ideal for HVAC equipment, dental equipment, breathing machines, computer peripherals, and various automotive applications.
