172646-0412

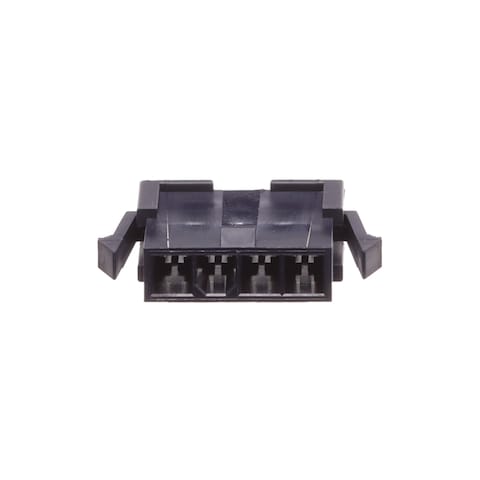

Name: Molex 172646-0412
Brand: Molex
SKU: 538-172646-0412
Price: 0.31 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-172646-0412

Mfr. No:

172646-0412

Mfr.:

Molex

Description:

Power to the Board MiniFitJr Plg SR PnlMnt V2 4Ckt

Datasheet:

172646-0412 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 3,838

Stock:: 3,838 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.316	$0.32
	$0.271	$2.71
	$0.242	$6.05
	$0.231	$23.10
	$0.207	$51.75
	$0.197	$197.00
	$0.184	$460.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Without Pin Contacts
Current Rating:	13 A
Number of Positions:	4 Position
Mounting Style:	Panel Mount
Termination Style:	Crimp
Pitch:	4.2 mm
Series:	172646
Tradename:	Mini-Fit Jr.
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Factory Pack Quantity:	3500
Subcategory:	Power Connectors
Part # Aliases:	1726460412 01726460412

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

172646-0412 Datasheet (PDF)

PCN

RoHS Certificate (PDF)

CNHTS:: 8547200000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
TARIC:: 8536693000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Mini-Fit Jr. Connectors

Molex Mini-Fit Jr. Connectors are ideal for higher-current / higher-density applications that require design flexibility for wire-to-wire and wire-to-board configurations. Molex Mini-Fit Jr. connectors are made for power applications up to 9.0A per circuit. The connectors feature fully isolated terminals, positive housing locks, low-engagement forces, and polarized housings. They are UL recognized, CSA approved, and TUV licensed. All components are lead free and RoHS compliant. Molex Mini-Fit Jr. Connectors are available in a single row or dual row, 2 to 24 circuit options, and multiple plating and material selections.

Mini-Fit Connector Family

Molex Mini-Fit Jr. and Mini-Fit Plus Power Connectors deliver up to 9A and 13A, respectively. Blind-mating and terminal-position assurance (TPA) options provide a versatile connector system for a wide range of applications. Typical applications for these Molex connectors include telecommunications / networking, industrial, home appliances, medical, and automotive.
