206461-1800

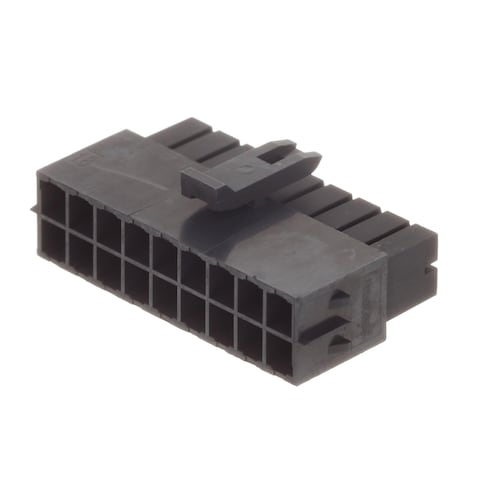

Name: Molex 206461-1800
Brand: Molex
SKU: 538-206461-1800
Price: 1.33 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-206461-1800

Mfr. No:

206461-1800

Mfr.:

Molex

Description:

Headers & Wire Housings Micro-Fit Plus Rcpt Hsg 2X9

Datasheet:

206461-1800 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 206461-1800

In Stock: 885

Stock:: 885 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.33	$1.33
	$1.18	$11.80
	$1.12	$28.00
	$1.04	$104.00
	$0.95	$237.50
	$0.874	$437.00
	$0.782	$625.60
	$0.733	$1,759.20
	$0.70	$3,920.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	18 Position
Pitch:	3 mm (0.118 in)
Number of Rows:	2 Row
Row Spacing:	3 mm (0.118 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Series:	206461
Tradename:	Micro-Fit+
Application:	Wire-to-Board, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Female
Housing Material:	Nylon
Latching Type:	Friction Lock
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	800
Subcategory:	Headers & Wire Housings
Unit Weight:	1.813 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

206461-1800 Datasheet

Models

STP File (Zip)

RoHS Certificate (PDF)

CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Body Electronics Solutions

Molex Body Electronics Solutions create dynamic solutions for unique driving styles and enhance vehicle functionality. Molex Body Electronics products include control modules, cable assemblies, and interconnects that minimize weight and maximize space utilization. Molex Body Electronics are ideal for steering, power distribution, entry systems, and climate control applications.

Power Solutions

Molex is uniquely equipped to provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex's wide selection of power connectors ranges from versatile to popular and proven. Designers can achieve power delivery and power distribution with Molex's vast array of power connectors.

Micro-Fit+ Connectors

Molex Micro-Fit+ Connectors offer superior design options for flexibility and efficient assembly. The connectors offer a high current rating of up to 13.5A with a 3mm pitch and use the same amount of space that smaller connectors occupy. Features include a smaller PCB footprint, a reduced mating force of 40%, and an enhanced TPA design that provides stability and security for the terminals inside the receptacle. Molex Micro-Fit+ applications include consumer, telecommunication/networking, medical, sustainable energy, and automotive.
