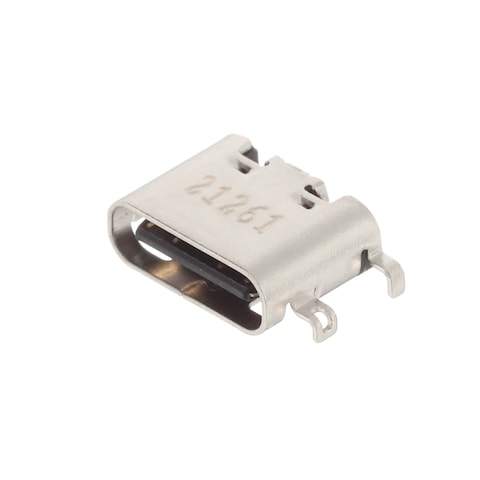

216990-0002

Molex
538-216990-0002
216990-0002

Mfr.:

Description:
USB Connectors Mid-Mnt SMT CH0.78 16Ckt Type C Rec.

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.
More Information
Learn more about Molex 216990-0002

In Stock: 1,664

Stock:
1,664
Can Dispatch Immediately
On Order:
8,400
Factory Lead Time:
19
Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
$-.--
Ext. Price:
$-.--
Est. Tariff:
Packaging:
Full Reel (Order in multiples of 1400)

Pricing (USD)

Qty. Unit Price
Ext. Price
Cut Tape / MouseReel™ †
$0.793 $0.79
$0.672 $6.72
$0.60 $15.00
$0.571 $57.10
$0.536 $134.00
$0.509 $254.50
Full Reel (Order in multiples of 1400)
$0.42 $588.00
$0.404 $1,696.80
† A MouseReel™ fee of $7.00 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

Product Attribute Attribute Value Select Attribute
Molex
Product Category: USB Connectors
RoHS:
USB Type C Connectors
Receptacle (Female)
USB 2.0
SMD/SMT
16 Contact
1 Port
1.25 A
30 V
Right Angle
SMD/SMT
Reel
Cut Tape
MouseReel
Board Thickness: 0.8 mm
Brand: Molex
Color: Black
Contact Material: Copper Alloy
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Product Type: USB Connectors
Series: 216990
Shell Plating: Gold
Factory Pack Quantity: 1400
Subcategory: USB Connectors
Part # Aliases: 2169900002 02169900002
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

Images

Models

Test/Quality Data

CNHTS:
8536901100
TARIC:
8536693000
CAHTS:
8536690020
USHTS:
8536694040
JPHTS:
853669000
KRHTS:
8536691000
MXHTS:
8536699999
BRHTS:
85366990
ECCN:
EAR99

USB Type-C Connectors

Molex USB Type-C™ Connectors feature a compact design and support up to a 5A current and high speeds. The connectors are available in an expansive range of product types and mounting options. Molex USB Type-C Connectors deliver waterproof, robust, reliable connectivity in consumer, industrial, and Internet of Things (IoT) devices, as well as other high-speed I/O applications.
