34770-0402

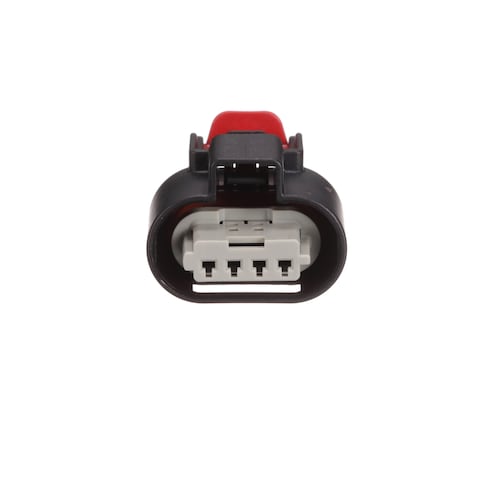

Name: Molex 34770-0402
Brand: Molex
SKU: 538-34770-0402
Price: 0.91 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-34770-0402

Mfr. No:

34770-0402

Mfr.:

Molex

Description:

Automotive Connectors MX150 1.5 RCPT 1X4 CPA LTGY

Datasheet:

34770-0402 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 2,943

Stock:: 2,943

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 857
Factory Lead Time:: 7

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.918	$0.92
	$0.829	$8.29
	$0.801	$20.03
	$0.768	$76.80
	$0.697	$174.25
	$0.657	$328.50
	$0.603	$603.00
	$0.599	$1,533.44

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	4 Position
Pitch:	3 mm (0.118 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Series:	34770
Brand:	Molex
Contact Gender:	Without Socket Contacts
Contact Type:	Receptacle
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Description/Function:	MX150 Mat-Sealed Female Connector Assembly, Keying Option B
Features:	With Connector Position Assurance
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Tradename:	MX150
Part # Aliases:	0347700402 347700402
Unit Weight:	7.237 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CNHTS:: 8547200000
CAHTS:: 8538903900
USHTS:: 8538908180
JPHTS:: 853890000
TARIC:: 8538909999
BRHTS:: 85389090
ECCN:: EAR99

Environmentally Sealed Connectors

Molex Environmentally Sealed Connectors provide an ideal interconnect solution for heavy-duty and harsh-environment applications. Molex offers a wide range of standard-sealed and custom-sealed interconnect systems. These connectors are suitable for applications requiring ruggedized sealed plugs, receptacles, and power connectors, including IP67 or IP68 ratings.
