34894-4009

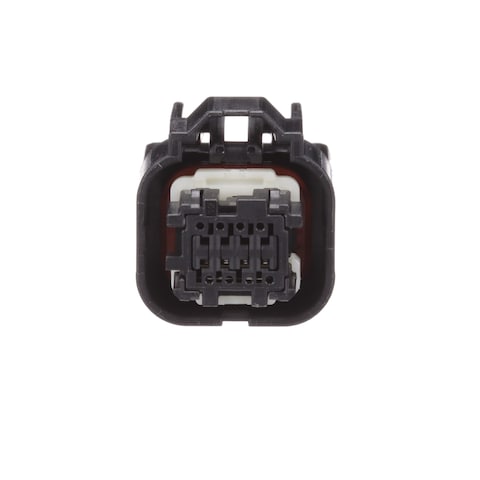

Name: Molex 34894-4009
Brand: Molex
SKU: 538-34894-4009
Price: 1.3 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-34894-4009

Mfr. No:

34894-4009

Mfr.:

Molex

Description:

Automotive Connectors Mini50 Sld Rcpt Hsg DR w/o CPA 8Ckt OpA

Datasheet:

34894-4009 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 34894-4009

In Stock: 1,553

Stock:: 1,553 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 21 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 1553 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.30	$1.30

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	8 Position
Pitch:	1.8 mm (0.071 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	26 AWG
Wire Gauge Max:	22 AWG
Color:	Black
Series:	34894
Packaging:	Bulk
Brand:	Molex
Contact Gender:	Without Socket Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	4 A
Flammability Rating:	UL 94 HB
Housing Material:	Nylon
Ingress Protection:	IP68, IPX8, IPX9K
Insulation Resistance:	100 MOhms
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	1600
Subcategory:	Automotive Connectors
Tradename:	Mini50
Type:	Mini50 Receptacle Assembly
Voltage Rating:	14 VDC
Wire Gauge Range:	22 AWG to 26 AWG
Part # Aliases:	348944009 0348944009

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

USHTS:: 8538906000
ECCN:: EAR99

Mini50 Sealed Single-Row Automotive Connectors

Molex Mini50 Sealed Single-Row Automotive Connectors are 4-circuit and 10-circuit option connectors with a sealed interface that delivers a 25% space savings over traditional sealed 0.64mm connectors. The sealed Mini50 components feature smaller terminals to fit more low-current electrical circuits in sealed transportation-vehicle environments. Typical applications include power steering, cameras, sensors, braking, exterior lights, and mirrors.
