505448-1291

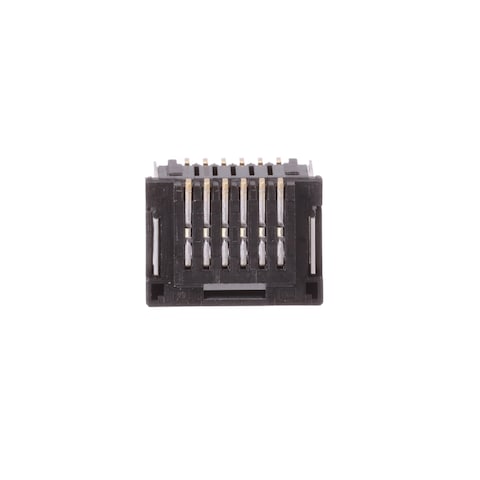

Name: Molex 505448-1291
Brand: Molex
SKU: 538-505448-1291
Price: 2.58 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-505448-1291

Mfr. No:

505448-1291

Mfr.:

Molex

Description:

Headers & Wire Housings 1.25WB DL RA 12CKT BK G010

Datasheet:

505448-1291 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 505448-1291

In Stock: 1,955

Stock:: 1,955 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 24 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$2.58	$2.58
	$2.20	$22.00
	$1.87	$187.00
	$1.68	$840.00
	$1.62	$1,620.00
	$1.53	$4,590.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	12 Position
Pitch:	1.25 mm (0.049 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	505448
Tradename:	Micro-Lock Plus
Application:	Wire-to-Board, Signal
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	1.5 A
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	3000
Subcategory:	Headers & Wire Housings
Voltage Rating:	50 VAC/DC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

505448-1291 Datasheet

Models

PCN

Product Change Notification (PDF)

CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Signal Wire-to-Wire/Wire-to-Board Connectors

Molex Signal Wire-to-Wire/Wire-to-Board Connectors and Connector Systems feature a variety of wire-to-board signal connectors that offer design flexibility. Molex Signal WTW/WTB connectors and systems are ideal for personal computers and lighting, as well as automotive and industrial applications, depending on the model.

Miniaturization Solutions

Molex Miniaturization Solutions are ideal for a vast array of applications such as automotive, smart devices, mobile devices, and medical technology. These connectors provide space savings, high-density signals, and durability. The miniaturization of Molex connectors offers the benefit of fitting more components into smaller spaces, leading to increased functionality without the increased size or weight.

Micro-Lock Plus Connectors

Molex Micro-Lock Plus Wire-to-Board Connectors provide electrical and mechanical reliability in high-temperature designs that meet automotive and other industry requirements. These connectors are 1.25mm, 1.5mm, and 2mm pitch connectors with positive lock, delivering secure mating retention without sacrificing compactness. The micro-lock plus connectors operate at a temperature range of -40ºC to 105ºC, which can resist harsh environments. These connectors feature robust metal solder tabs and a wide positive latch that delivers an audible click. The 1.25mm version features a dual-contact terminal design. These connectors are used in automotive, power for data centers, and appliances.
