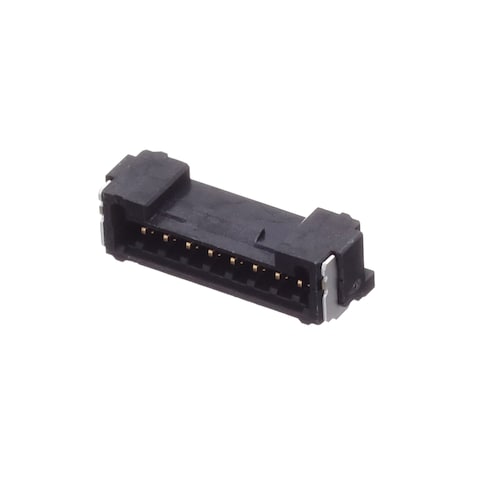

Name: Molex 505567-0851
Brand: Molex
SKU: 538-505567-0851
Price: 2.56 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-505567-0851

Mfr. No:

505567-0851

Mfr.:

Molex

Description:

Headers & Wire Housings 1.25WB SGL R 8CKT BK G076

Datasheet:

505567-0851 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 6,172

Stock:: 6,172 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$2.56	$2.56
	$2.23	$22.30
	$2.14	$53.50
	$2.00	$200.00
	$1.81	$452.50
	$1.67	$835.00
	$1.37	$1,370.00
	$1.33	$3,325.00
	$1.22	$6,100.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Number of Positions:	8 Position
Pitch:	1.25 mm (0.049 in)
Number of Rows:	1 Row
Mounting Angle:	Right Angle
Contact Plating:	Gold
Series:	505567
Tradename:	Micro-Lock
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	1.5 A
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	7200
Subcategory:	Headers & Wire Housings
Voltage Rating:	50 VAC/DC
Part # Aliases:	5055670851 05055670851

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Signal Wire-to-Wire/Wire-to-Board Connectors
