HX6101FNL

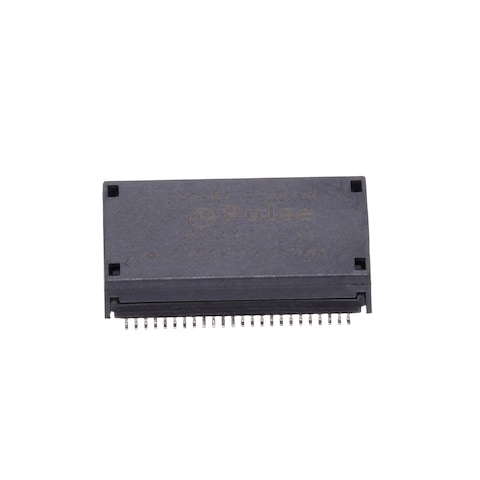

Name: Pulse HX6101FNL
Brand: Pulse Electronics
SKU: 673-HX6101FNL
Price: 15.6 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

673-HX6101FNL

Mfr. No:

HX6101FNL

Mfr.:

Pulse Electronics

Description:

Audio & Signal Transformers 1000Base-T PoE+ SMD 2-Port 120uH/350uH

Lifecycle:

NRND:

Not recommended for new designs.

Datasheet:

HX6101FNL Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Pulse Electronics HX6101FNL

In Stock: 8

Stock:: 8 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 6 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$15.60	$15.60
	$13.80	$138.00
	$13.34	$400.20
	$12.93	$775.80
	$12.60	$1,323.00
	$12.10	$3,085.50
	$11.71	$5,972.10
	$11.61	$11,668.05
2,505	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Pulse
Product Category:	Audio & Signal Transformers
RoHS:
Product:	LAN Transformers
Type:	Module
Termination Style:	SMD/SMT
Frequency Range:	1 MHz to 100 MHz
Inductance:	350 uH
Isolation Voltage:	1.5 kV
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Number of Channels:	Dual
Application:	1000 Base-T
Length:	27.81 mm
Width:	14.99 mm
Height:	7.24 mm
Series:	HX
Packaging:	Tube
Brand:	Pulse Electronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Product Type:	Audio & Signal Transformers
Shielding:	Unshielded
Factory Pack Quantity:	15
Subcategory:	Transformers
Unit Weight:	8.383 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HX6101FNL Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8504232900
USHTS:: 8504312000
JPHTS:: 850431000
TARIC:: 8504318090
BRHTS:: 85043100
ECCN:: EAR99

PoE/PoE+/4P Solutions

Pulse Electronics PoE/PoE+/4P Solutions include LAN discrete magnetics and integrated connector modules (ICMs) designed and manufactured to comply with IEEE802.3 and ANSI X3.263 standards. The products support 100BASE-TX, 1000BASE-T, 2.5GBASE-T, 5GBASE-T, and 10GBASE-T data rates and meet IEEE 802.3 specifications for PoE/PoE+/4P PoE applications. Pulse connector modules with integrated magnetics are available with or without LEDs. Applications include switches, routers, base stations, access points, IPTV, industrial networking equipment, gateways, and security cameras.
