CES-123-01-T-D

Name: Samtec CES-123-01-T-D
Brand: Samtec
SKU: 200-CES12301TD
Price: 3.9 USD
Availability: OutOfStock

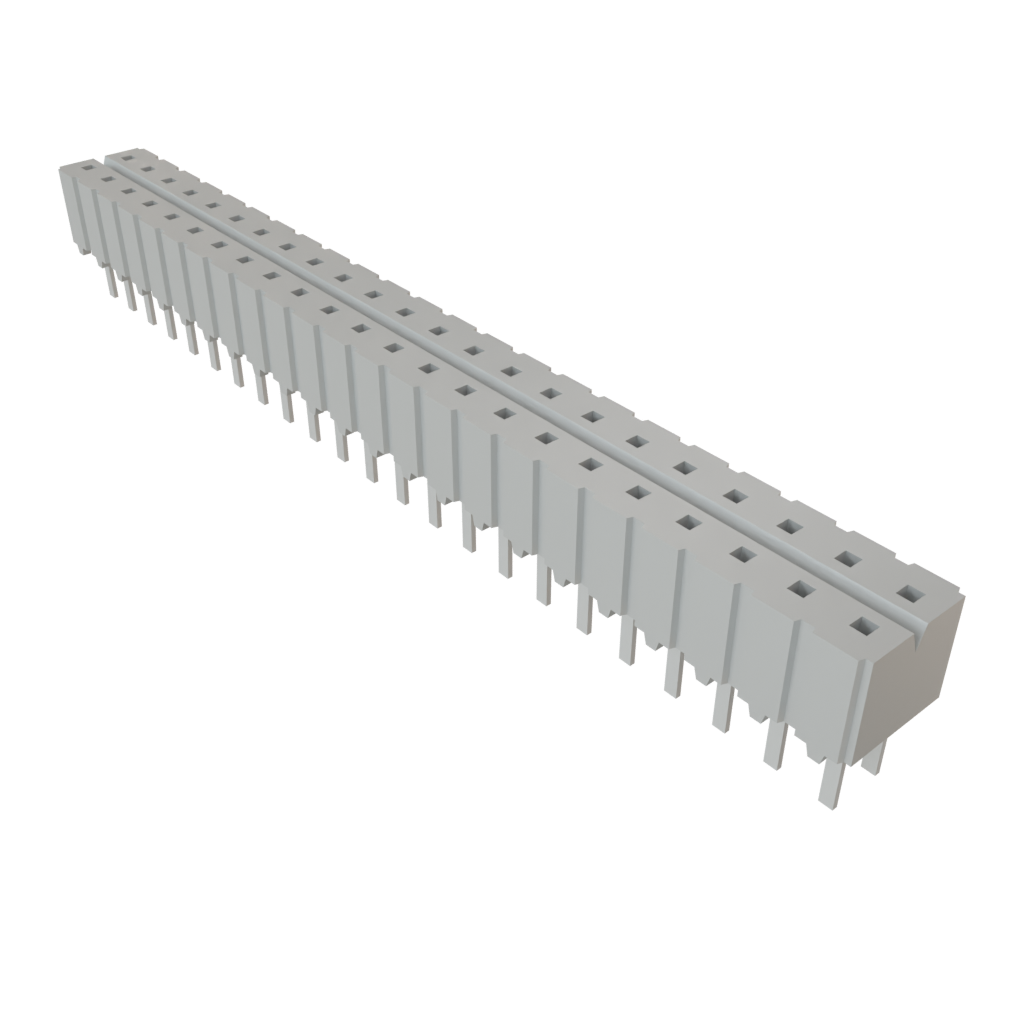

Images are for reference only
See Product Specifications

Mouser No:

200-CES12301TD

Mfr. No:

CES-123-01-T-D

Mfr.:

Samtec

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Socket
Number of Positions:	46 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Contact Plating:	Tin
Termination Post Length:	3.25 mm (0.128 in)
Series:	CES
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	5.5 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Polyester
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	9
Subcategory:	Headers & Wire Housings
Voltage Rating:	400 V
