EHF-125-01-S-D-SM-LC

Name: Samtec EHF-125-01-S-D-SM-LC
Brand: Samtec
SKU: 200-EHF12501SDSMLC
Price: 12.71 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-EHF12501SDSMLC

Mfr. No:

EHF-125-01-S-D-SM-LC

Mfr.:

Samtec

Description:

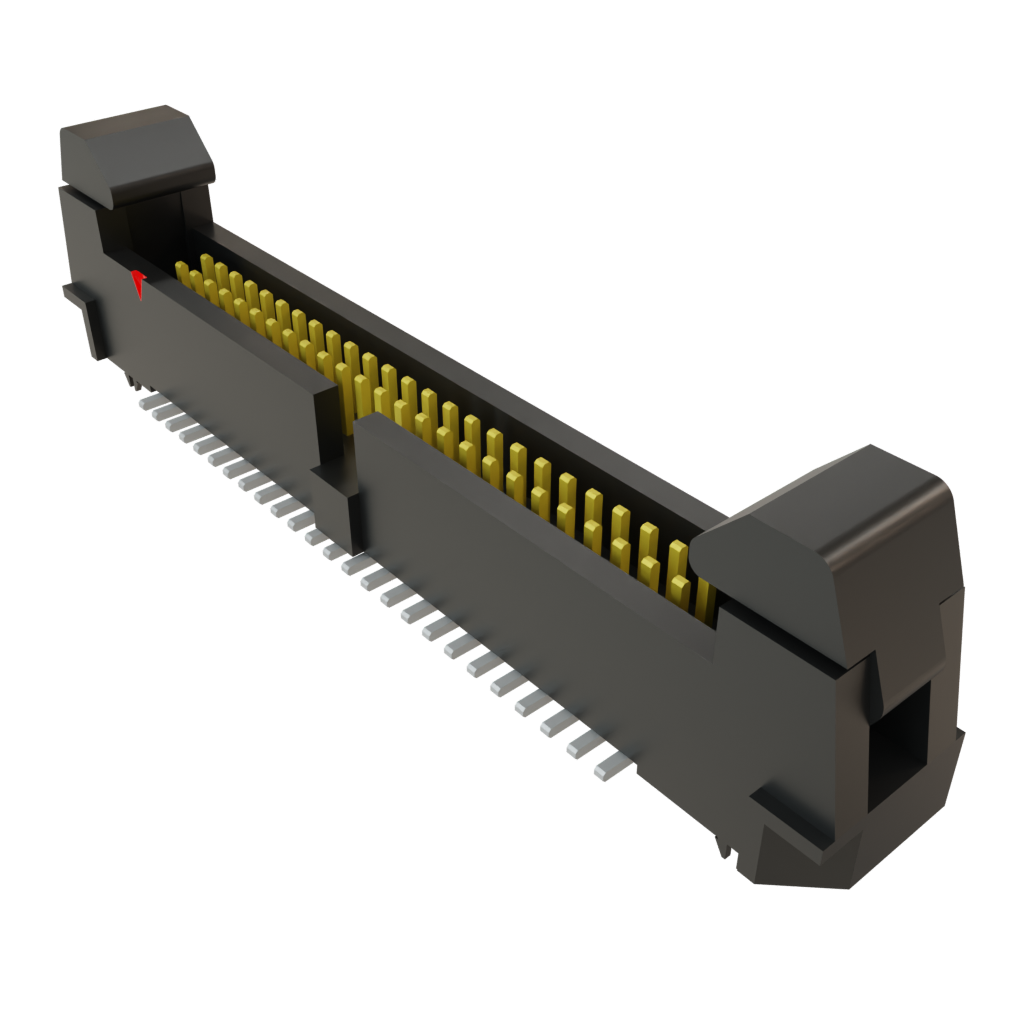

Headers & Wire Housings .050 Shrouded IDC Header with Ejectors

Datasheet:

EHF-125-01-S-D-SM-LC Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec EHF-125-01-S-D-SM-LC

In Stock: 16

Stock:: 16 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$12.71	$12.71
	$11.59	$278.16
	$10.57	$634.20
	$9.72	$1,049.76
	$9.44	$2,378.88

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	50 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	3.05 mm (0.12 in)
Series:	EHF
Application:	Board-to-Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	12
Subcategory:	Headers & Wire Housings
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

ECF/EHF/ESHF/SHF Shrouded & Ejector IDC Headers
