EJH-108-02-L-D-TH

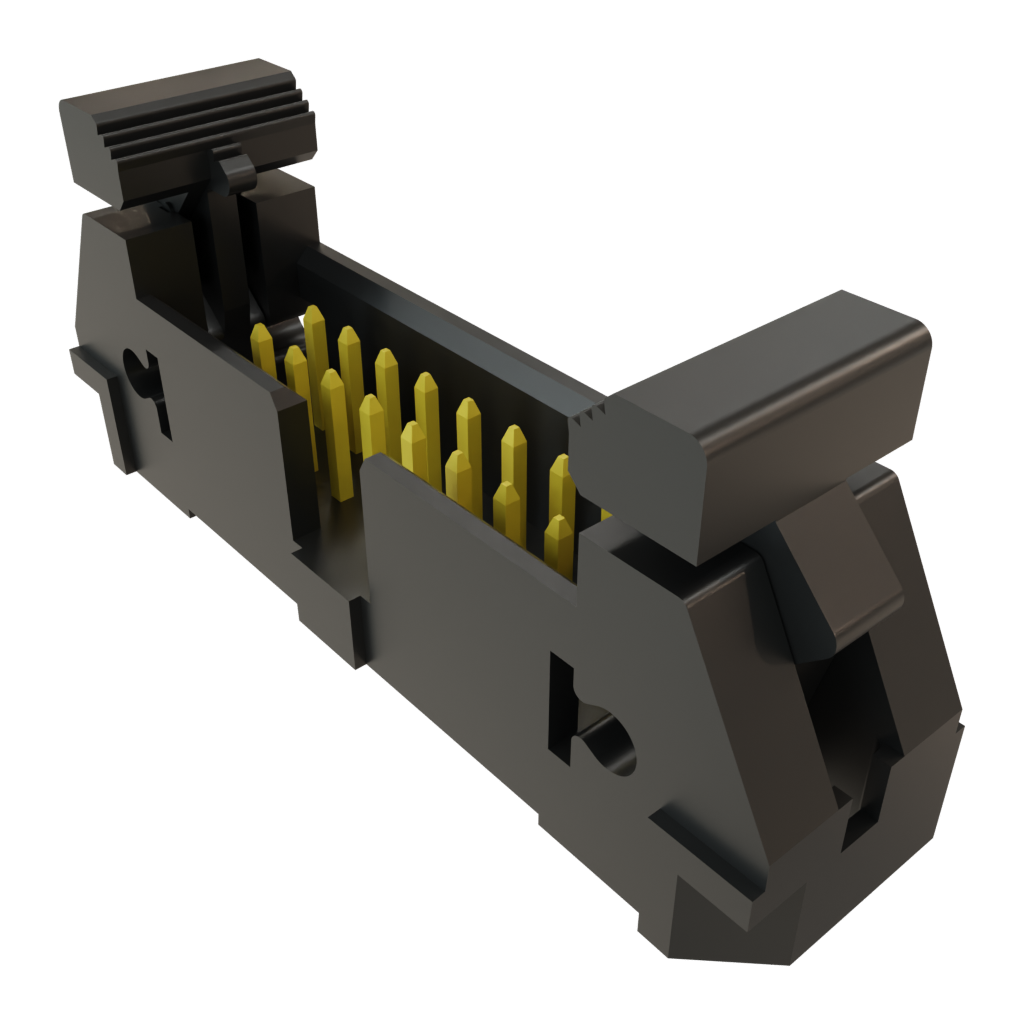

Name: Samtec EJH-108-02-L-D-TH
Brand: Samtec
SKU: 200-EJH10802LDTH
Price: 5.24 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-EJH10802LDTH

Mfr. No:

EJH-108-02-L-D-TH

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Shrouded IDC Ejector Header

Datasheet:

EJH-108-02-L-D-TH Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec EJH-108-02-L-D-TH

In Stock: 387

Stock:: 387 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$5.24	$5.24
	$4.88	$126.88
	$4.54	$236.08
	$4.32	$449.28
	$4.18	$2,119.26

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	16 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	Through Hole
Termination Style:	IDC
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	EJH
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	13
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

CNHTS:: 8536901100
USHTS:: 8536694040
ECCN:: EAR99

EJH 2.54mm (.100") Shrouded IDC Ejector Headers

Samtec EJH 2.54mm (.100") Pitch Shrouded IDC Ejector Headers are polarized connectors that feature an ejector mechanism with surface mount, right-angle, or through-hole tail options. These connectors are also available in standard and extended lead styles. Operating in a temperature range of -55°C to +125°C, the EJH Shrouded IDC Ejector Headers mate with the IDSD (-01 lead standard style required) and the HCSD (-02 lead standard style required) components.
