EJH-113-02-F-D-SM

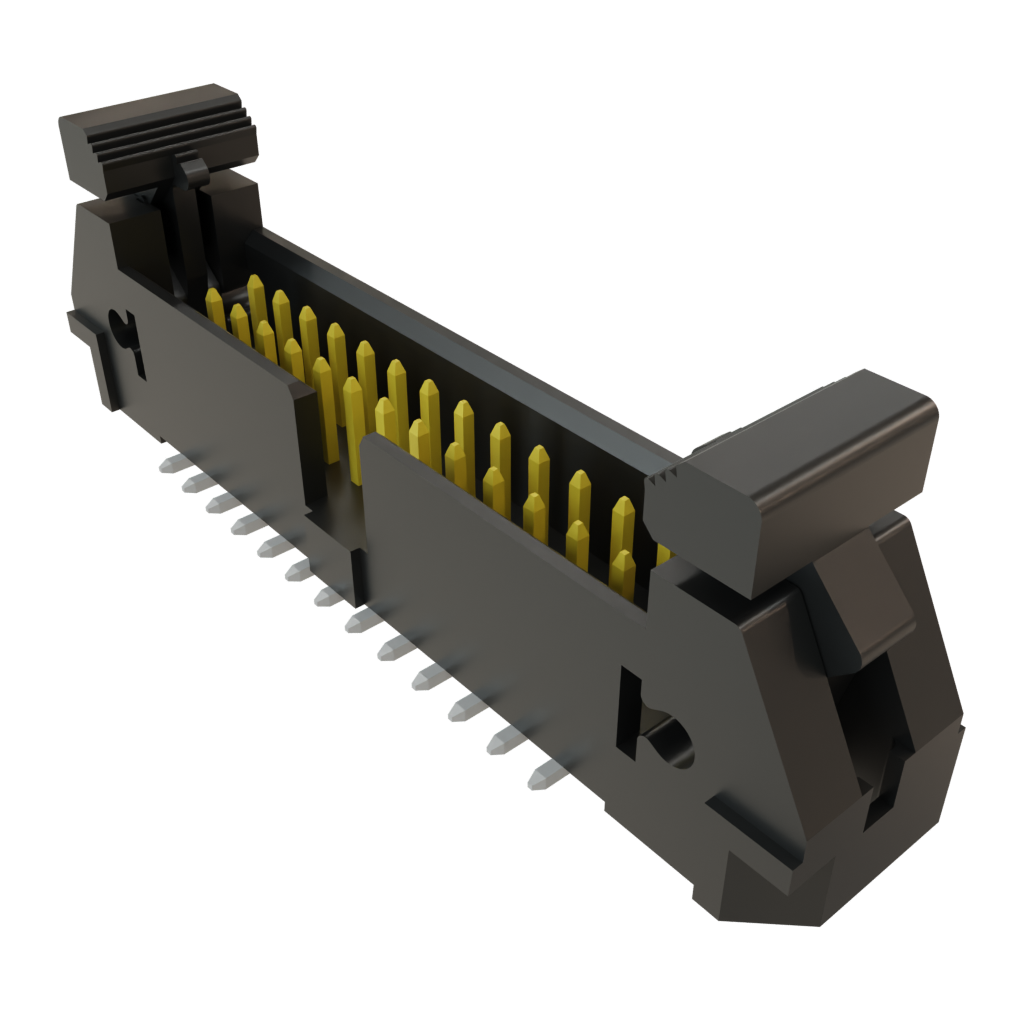

Name: Samtec EJH-113-02-F-D-SM
Brand: Samtec
SKU: 200-EJH11302FDSM
Price: 7.27 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-EJH11302FDSM

Mfr. No:

EJH-113-02-F-D-SM

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Shrouded IDC Ejector Header

Datasheet:

EJH-113-02-F-D-SM Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec EJH-113-02-F-D-SM

In Stock: 30

Stock:: 30 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 46 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$7.27	$7.27
	$6.70	$67.00
	$6.50	$195.00
	$6.16	$308.00
	$5.50	$550.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	26 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	IDC
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	EJH
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	10
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

EJH-113-02-F-D-SM Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

CNHTS:: 8536901100
USHTS:: 8536694040
ECCN:: EAR99

EJH 2.54mm (.100") Shrouded IDC Ejector Headers

Samtec EJH 2.54mm (.100") Pitch Shrouded IDC Ejector Headers are polarized connectors that feature an ejector mechanism with surface mount, right-angle, or through-hole tail options. These connectors are also available in standard and extended lead styles. Operating in a temperature range of -55°C to +125°C, the EJH Shrouded IDC Ejector Headers mate with the IDSD (-01 lead standard style required) and the HCSD (-02 lead standard style required) components.
