FFMD-25-T-20.00-01-N

Name: Samtec FFMD-25-T-20.00-01-N
Brand: Samtec
SKU: 200-FFMD25T200001N
Price: 25.76 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-FFMD25T200001N

Mfr. No:

FFMD-25-T-20.00-01-N

Mfr.:

Samtec

Description:

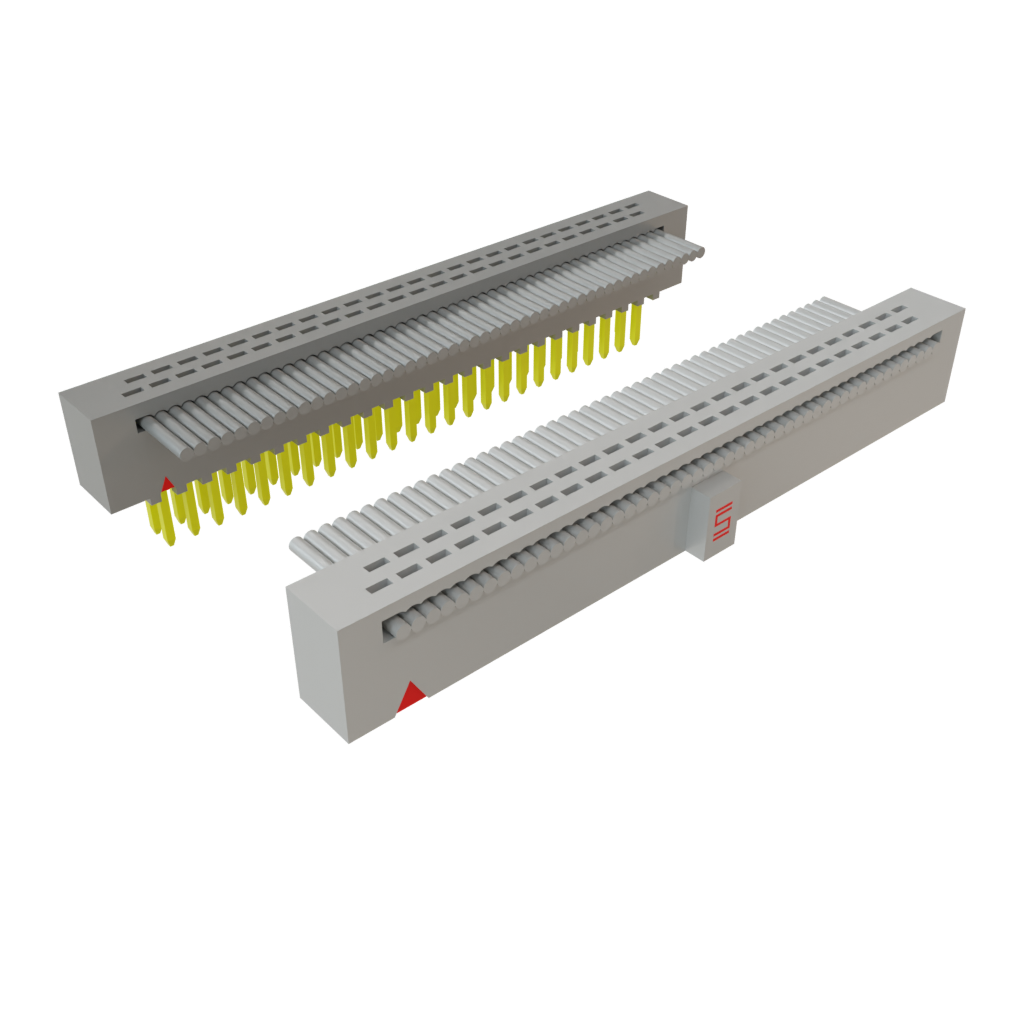

Ribbon Cables / IDC Cables .050 Tiger Eye IDC Ribbon Cable Assemblies

Datasheet:

FFMD-25-T-20.00-01-N Datasheet (PDF)

More Information

Learn more about Samtec FFMD-25-T-20.00-01-N

In Stock: 3

Stock:: 3 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$25.76	$25.76
	$22.56	$225.60
	$21.68	$542.00
	$20.76	$1,038.00
	$20.18	$2,018.00
	$19.46	$4,865.00
	$18.33	$9,165.00
1,000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	Flat Ribbon
Connector End A:	Plug
Connector End A Pin Count:	50 Position
Connector End B:	IDC Socket
Connector End B Pin Count:	50 Position
Pitch:	1.27 mm
Gender:	Male / Female
Cable Length:	508 mm
Wire Gauge - AWG:	30 AWG
Series:	FFMD
Packaging:	Bulk
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	2.5 A
Jacket Material:	Polybutylene Terephthalate (PBT)
Product:	IDC Ribbon Cable Assemblies
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye
Voltage Rating:	215 VAC/304 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

FFMD-25-T-20.00-01-N Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
TARIC:: 8544429090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

FFSD/FFMD Tiger Eye™ Flat IDC Ribbon Cables

Samtec FFSD/FFMD Tiger Eye™ Flat IDC Ribbon Cables offer a low 0.050" (1.27mm) pitch connection that operates in a -40°C to +105°C temperature range. The IDC ribbon cables feature the high-performance Samtech Tiger Eye contacts with a choice of socket (FFSD) or plug (FFMD) terminations. The flat ribbon cables are 30AWG with options for single-end, double-end, or transfer-end (FFMD only). The FFSD/FFMD flat IDC ribbon cables mate with .016" (0.41mm) square post terminal strips.
