HQDP-040-06.00-TTL-TTL-5-B

Name: Samtec HQDP-040-06.00-TTL-TTL-5-B
Brand: Samtec
SKU: 200-HQDP4006TTLTTL5B
Price: 119.67 USD
Availability: OutOfStock

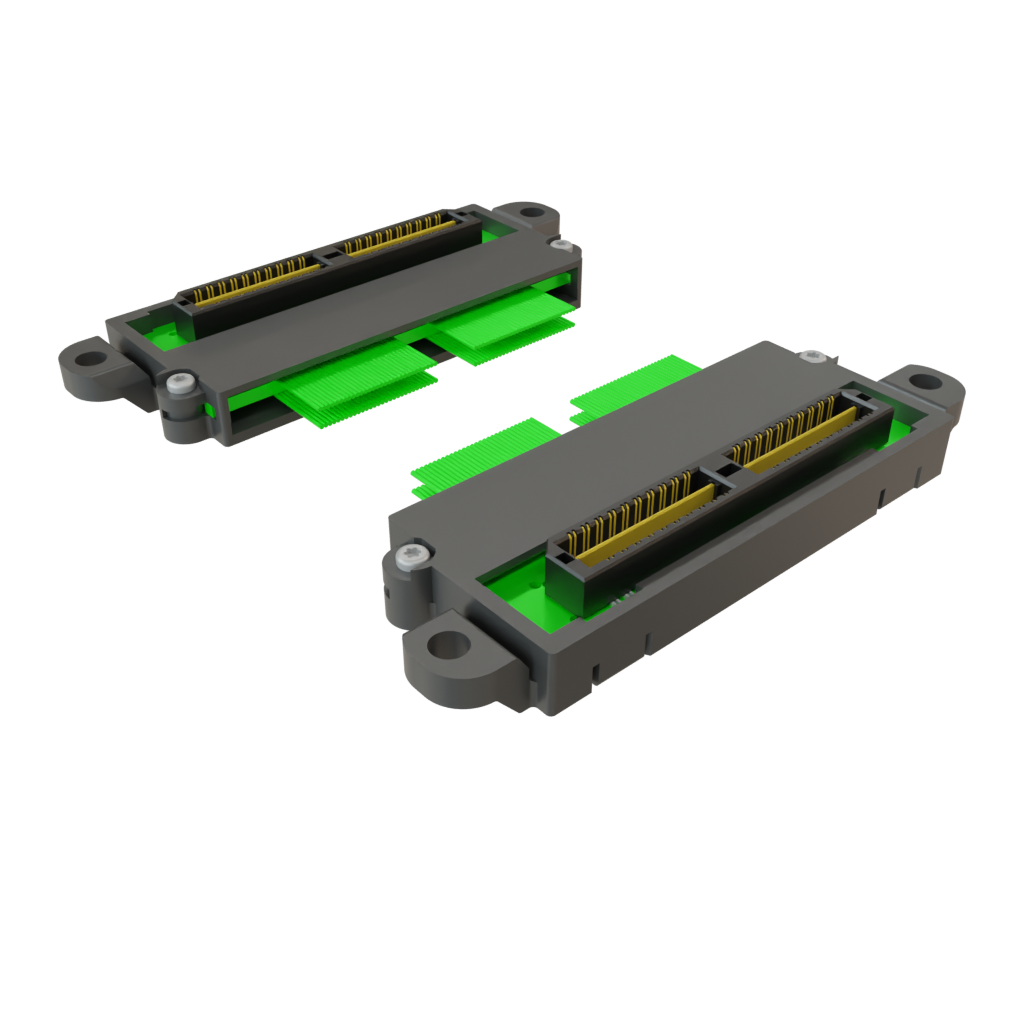

Images are for reference only
See Product Specifications

Mouser No:

200-HQDP4006TTLTTL5B

Mfr. No:

HQDP-040-06.00-TTL-TTL-5-B

Mfr.:

Samtec

Description:

Ribbon Cables / IDC Cables 0.50 mm Q Pairs Twinax Cable Assemblies

Datasheet:

HQDP-040-06.00-TTL-TTL-5-B Datasheet

More Information

Learn more about Samtec HQDP-040-06.00-TTL-TTL-5-B

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$119.67	$119.67
	$111.01	$1,110.10
	$102.98	$2,574.50
	$102.36	$5,118.00
	$97.49	$9,749.00
250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	Twinax Ribbon Cable
Connector End A:	Plug
Connector End A Pin Count:	80 Position
Connector End B:	Plug
Connector End B Pin Count:	80 Position
Pitch:	0.5 mm
Gender:	Male / Male
Cable Length:	152.4 mm
Wire Gauge - AWG:	30 AWG
Series:	HQDP
Packaging:	Bag
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	400 mA
Product:	High Speed Cable Assemblies
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HQDP-040-06.00-TTL-TTL-5-B Datasheet

Images


Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8544422100
CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
TARIC:: 8544429090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

High-Speed Cable Assemblies

Samtec High-Speed Cable Assemblies include AcceleRate® slim body, ERCD 0.80mm Edge Rate®, HLCD high-speed hermaphroditic, HQCD 0.50mm Q Strip®, and SEAC SEARAY™ series. The AcceleRate cable assembly consists of the ARC6 slim cable body that mates together with the ARF6 series for a secure connection. The ERCD 0.80mm Edge Rate assemblies use Samtec's Eye Speed cable to provide a 14Gbps performance and feature a double-row system to 120 pins and a standard metal latching system. Eye Speed cable technology offers excellent signal integrity performance with an individual copper serve or braid shielding, 26AWG to 38AWG coax and twinax construction, and 20Ω, 50Ω, 85Ω, and 100Ω ratings.

HQDP Q Pairs® Twinax Cable Assemblies

Samtec HQDP Q Pairs® Twinax Cable Assemblies offer a 0.50mm pitch, 100Ω differential signal routing, and -25°C to +105°C temperature range. HQDP cable assemblies feature a 30AWG twinax ribbon cable, a double row system up to 120 pins, and optional screw mounts for the most rugged environments. These assemblies use Samtec's Eye Speed® cable to provide 14Gbps performance.
