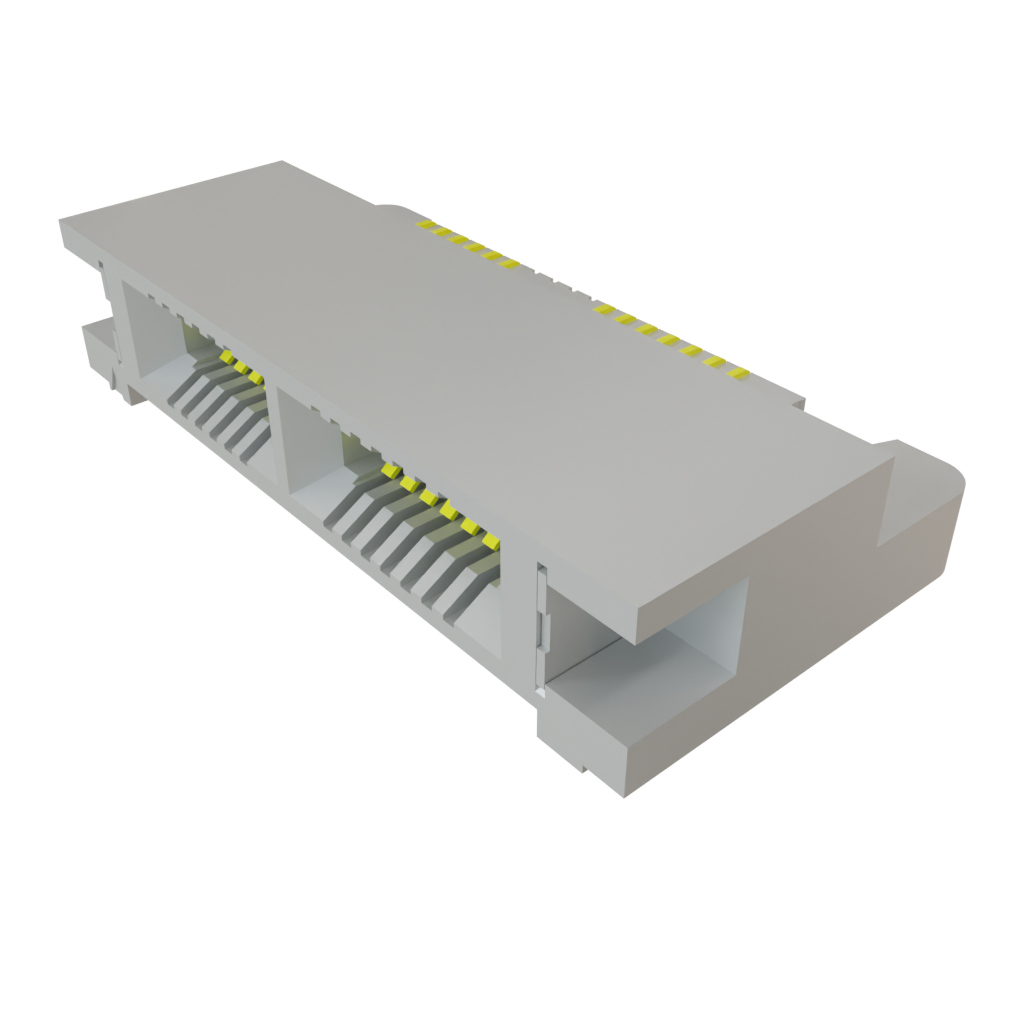

HSEC8-113-01-L-RA-L2

Name: Samtec HSEC8-113-01-L-RA-L2
Brand: Samtec
SKU: 200-HSEC811301LRAL2
Price: 6.98 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HSEC811301LRAL2

Mfr. No:

HSEC8-113-01-L-RA-L2

Mfr.:

Samtec

Description:

Standard Card Edge Connectors 0.80 mm High-Speed Power/Signal Combo Edge Card Connector

Datasheet:

HSEC8-113-01-L-RA-L2 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HSEC8-113-01-L-RA-L2

In Stock: 9

Stock:: 9 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$6.98	$6.98
	$6.52	$65.20
	$6.27	$250.80
	$5.71	$685.20

Alternative Packaging

Mfr. Part No.:

HSEC8-113-01-L-RA-L2-TR

Packaging:

Reel, Cut Tape, MouseReel

Availability:

In Stock

Price:

$7.19

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Sockets
Number of Positions:	26 Position
Pitch:	0.8 mm
Board Thickness:	1.6 mm
Mounting Style:	SMD/SMT
Mounting Angle:	Right Angle
Contact Plating:	Gold
Series:	HSEC8
Brand:	Samtec
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	2.8 A
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Tray
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	40
Subcategory:	Card Edge Connectors
Termination Style:	SMD/SMT
Tradename:	Edge Rate
Voltage Rating:	240 VAC
Unit Weight:	426.400 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Edge Rate® HSEC8 High-Speed Edge Card Connectors

Samtec Edge Rate® HSEC8 High-Speed Edge Card Connectors are part of the 28+ Gbps Solution product line. The connectors feature the rugged Edge Rate contact system designed for signal integrity and multiple mating cycles. Card slot options include 1.60mm (0.062") and 2.36mm (0.093"). Samtec Edge Rate® HSEC8 High-Speed Edge Card Connectors' available options include weld tabs, board locks, and cable latching.

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

High-Speed Edge Card Connectors

Samtec High-Speed Edge Card Connectors feature a wide variety of pitches, including 0.5mm, 0.635mm, 0.8mm, 1mm, 1.27mm, 1.6mm, and 2mm. Mounting angles include straight, right, and vertical. These connectors are offered in an expansive range of mounting styles such as edge mount, board lock, mounting peg, SMD/SMT, straddle mount, through hole, and more. The number of positions on Samtec High-Speed Edge Card Connectors ranges from 8 to 300.

Rugged SI System Connectors for Embedded Vision

Samtec Rugged SI System Connectors for Embedded Vision are available in a variety of pitches, including 0.5mm, 0.635mm, and 0.8mm. The number of positions ranges from 10 to 200, while the mounting angles include straight, right, and vertical. Samtec Rugged SI System Connectors for Embedded Vision offer stack heights as low as 5mm. The product portfolio features headers, sockets, hermaphroditic connectors, receptacles, and connectors. Termination styles include solder and solder pin.

Rugged SI System Connectors for Automation

Samtec Rugged SI System Connectors for Automation are available in a range of stack heights, termination styles, and the number of rows. The mounting angles include right, straight, and vertical. The number of positions ranges from 10 to 200. Samtec Rugged SI System Connectors for Automation come in a variety of pitches, including 0.5mm, 0.635mm, and 0.8mm. The product portfolio includes connectors, headers, receptacles, sockets, and hermaphroditic connectors.
