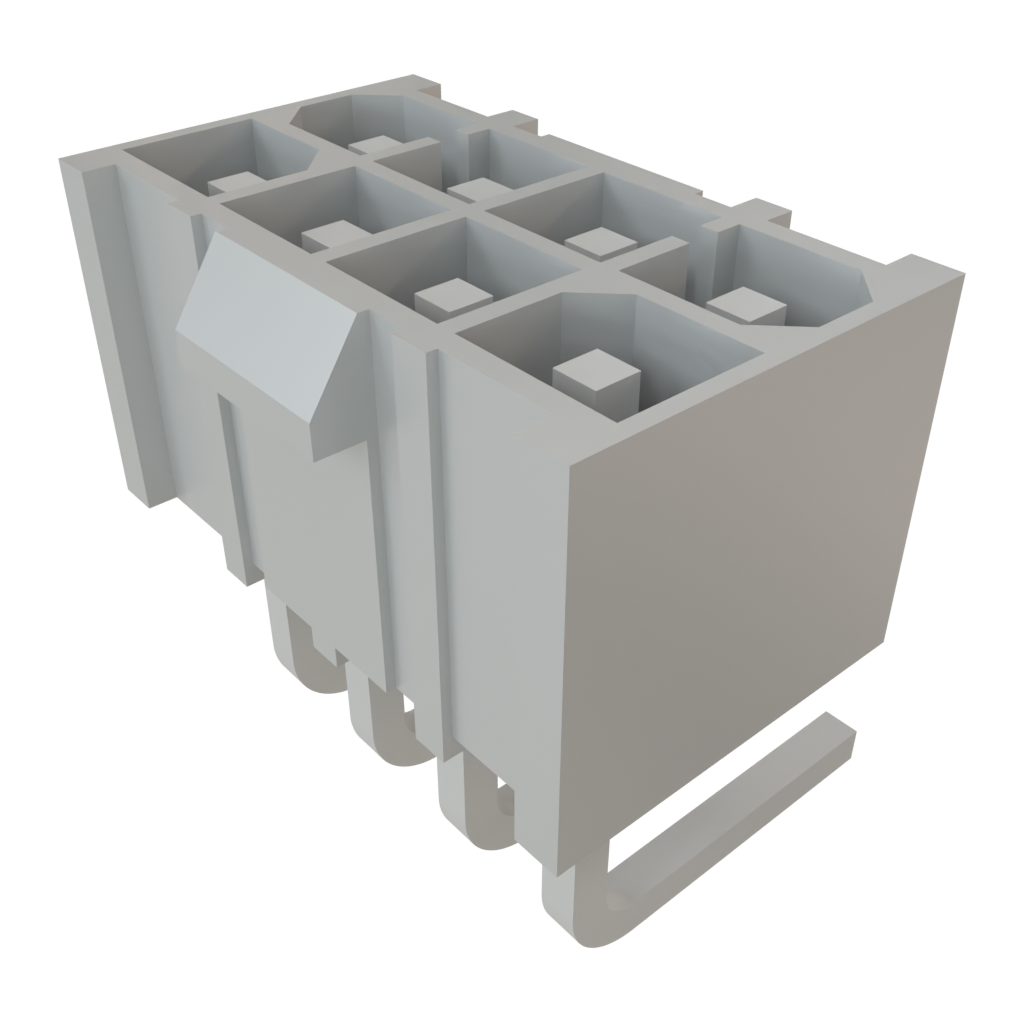

IPBT-104-H1-T-D-RA-K

Samtec
200-IPBT104H1TDRAK
IPBT-104-H1-T-D-RA-K

Mfr.:

Description:
Power to the Board 4.19MM POWER MATE BTB WTB HDR

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.
More Information
Learn more about Samtec IPBT-104-H1-T-D-RA-K

In Stock: 185

Stock:
185 Can Dispatch Immediately
Factory Lead Time:
11 Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
$-.--
Ext. Price:
$-.--
Est. Tariff:

Pricing (USD)

Qty. Unit Price
Ext. Price
$2.23 $2.23
$1.84 $110.40
$1.59 $190.80
$1.37 $698.70
$1.29 $1,315.80
$1.26 $2,532.60

Product Attribute Attribute Value Select Attribute
Samtec
Product Category: Power to the Board
RoHS:
Power to the Board
Pin (Male)
10.3 A
400 VAC, 565 VDC
8 Position
Through Hole
Solder Pin
4.19 mm
Tube
Power Mate
Brand: Samtec
Contact Material: Copper Alloy
Contact Plating: Tin
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: VN
Housing Colour: Black
Housing Material: Liquid Crystal Polymer (LCP)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
Mounting Angle: Right Angle
Number of Rows: 2 Row
Row Spacing: 4.19 mm
Factory Pack Quantity: 30
Subcategory: Power Connectors
Unit Weight: 1.152 g
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

Images

Specification Sheets

Technical Resources

CNHTS:
8536901100
CAHTS:
8536690020
USHTS:
8536694040
JPHTS:
853669000
KRHTS:
8536691000
TARIC:
8536693000
MXHTS:
8536699999
BRHTS:
85366990
ECCN:
EAR99
