IPD1-10-D-P

Name: Samtec IPD1-10-D-P
Brand: Samtec
SKU: 200-IPD1-10-D-P
Price: 1.9 USD
Availability: InStock

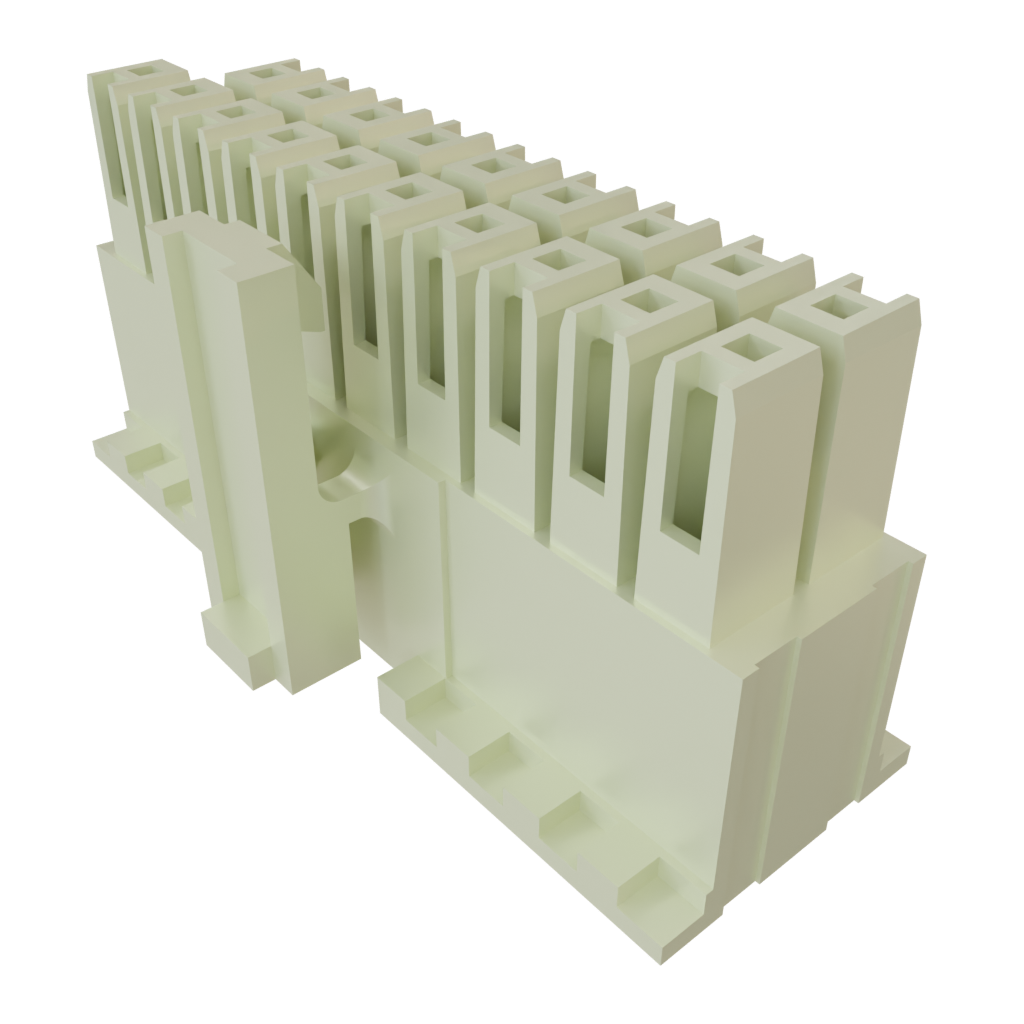

Images are for reference only
See Product Specifications

Mouser No:

200-IPD1-10-D-P

Mfr. No:

IPD1-10-D-P

Mfr.:

Samtec

Description:

Headers & Wire Housings 2.54MM MINI MATE SOCKET HSG

Datasheet:

IPD1-10-D-P Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec IPD1-10-D-P

In Stock: 1,501

Stock:: 1,501 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.90	$1.90
	$1.81	$90.50
	$1.60	$800.00
	$1.51	$1,510.00
	$1.48	$2,960.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	20 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Series:	IPD1
Tradename:	Mini Mate
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Gender:	Female
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Unit Weight:	1 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

IPD1-10-D-P Datasheet (PDF)

Images


PCN

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8538900000
USHTS:: 8538906000
ECCN:: EAR99

Mini Mate .100" (2.54mm) Discrete Wire Solutions

Samtec Mini Mate .100" (2.54mm) Discrete Wire Solutions include a variety of housings and contacts to meet a broad range of design needs with current ratings of up to 3.3A. The discrete wire connectors from Samtec are available in cable-to-board, cable-to-cable, and cable-to-panel options. Rugged individually shrouded contacts provide reliability in harsh environments. The fully polarized single- and double-row systems of up to 50 pins also include metal or plastic latch options.
