LSEM-130-04.0-L-DV-A-N-K-TR

Name: Samtec LSEM-130-04.0-L-DV-A-N-K-TR
Brand: Samtec
SKU: 200-LSEM13004LDVANK
Price: 6.97 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-LSEM13004LDVANK

Mfr. No:

LSEM-130-04.0-L-DV-A-N-K-TR

Mfr.:

Samtec

Description:

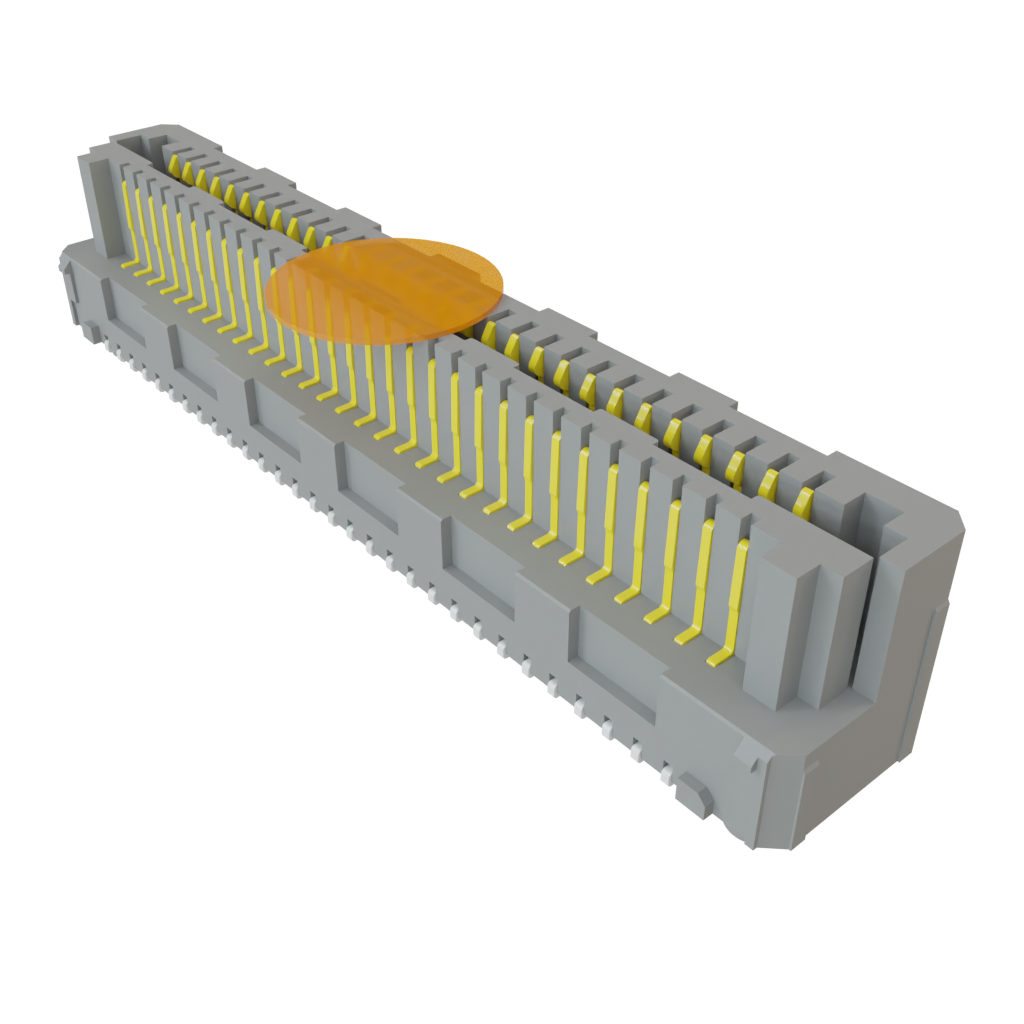

Board to Board & Mezzanine Connectors 0.80 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

Datasheet:

LSEM-130-04.0-L-DV-A-N-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 535

Stock:: 535 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$6.97	$6.97
	$6.44	$64.40
	$6.09	$152.25
	$5.87	$293.50
	$4.73	$473.00
Full Reel (Order in multiples of 500)
	$4.34	$2,170.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	60 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	7 mm, 8 mm, 10 mm
Current Rating:	1.8 A
Maximum Data Rate:	25 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	LSEM
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Data Rate:	25 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	Mounting Peg
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	500
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Razor Beam

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

LSEM (PDF)

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
