LSHM-150-03.0-F-DV-A-N-K-TR

Name: Samtec LSHM-150-03.0-F-DV-A-N-K-TR
Brand: Samtec
SKU: 200-LSHM15003FDVANK
Price: 6.72 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-LSHM15003FDVANK

Mfr. No:

LSHM-150-03.0-F-DV-A-N-K-TR

Mfr.:

Samtec

Description:

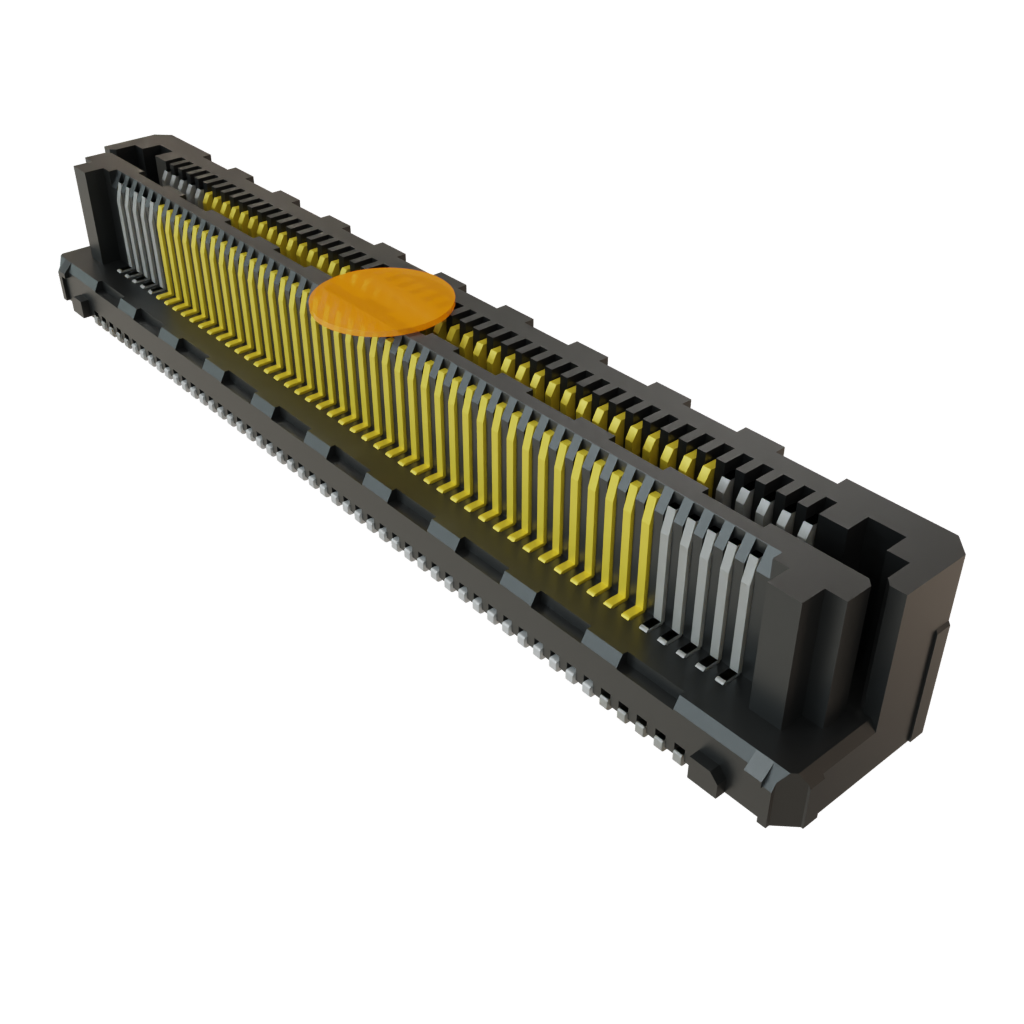

Board to Board & Mezzanine Connectors 0.50 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

Datasheet:

LSHM-150-03.0-F-DV-A-N-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec LSHM-150-03.0-F-DV-A-N-K-TR

In Stock: 385

Stock:: 385 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 385 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$6.72	$6.72
	$6.39	$159.75
	$6.01	$300.50
	$5.68	$568.00
	$4.61	$1,152.50
Full Reel (Order in multiples of 550)
	$4.47	$2,458.50
	$4.33	$4,763.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	100 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Current Rating:	2 A
Voltage Rating:	160 VAC
Maximum Data Rate:	16 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	LSHM
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Data Rate:	16 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	Board Lock
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	550
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Razor Beam

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

LSHM-150-03.0-F-DV-A-N-K-TR Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
