QRM8-026-02.0-L-D-A-GP-K-TR

Name: Samtec QRM8-026-02.0-L-D-A-GP-K-TR
Brand: Samtec
SKU: 200-802602.0LDAGPKTR
Price: 11.54 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-802602.0LDAGPKTR

Mfr. No:

QRM8-026-02.0-L-D-A-GP-K-TR

Mfr.:

Samtec

Description:

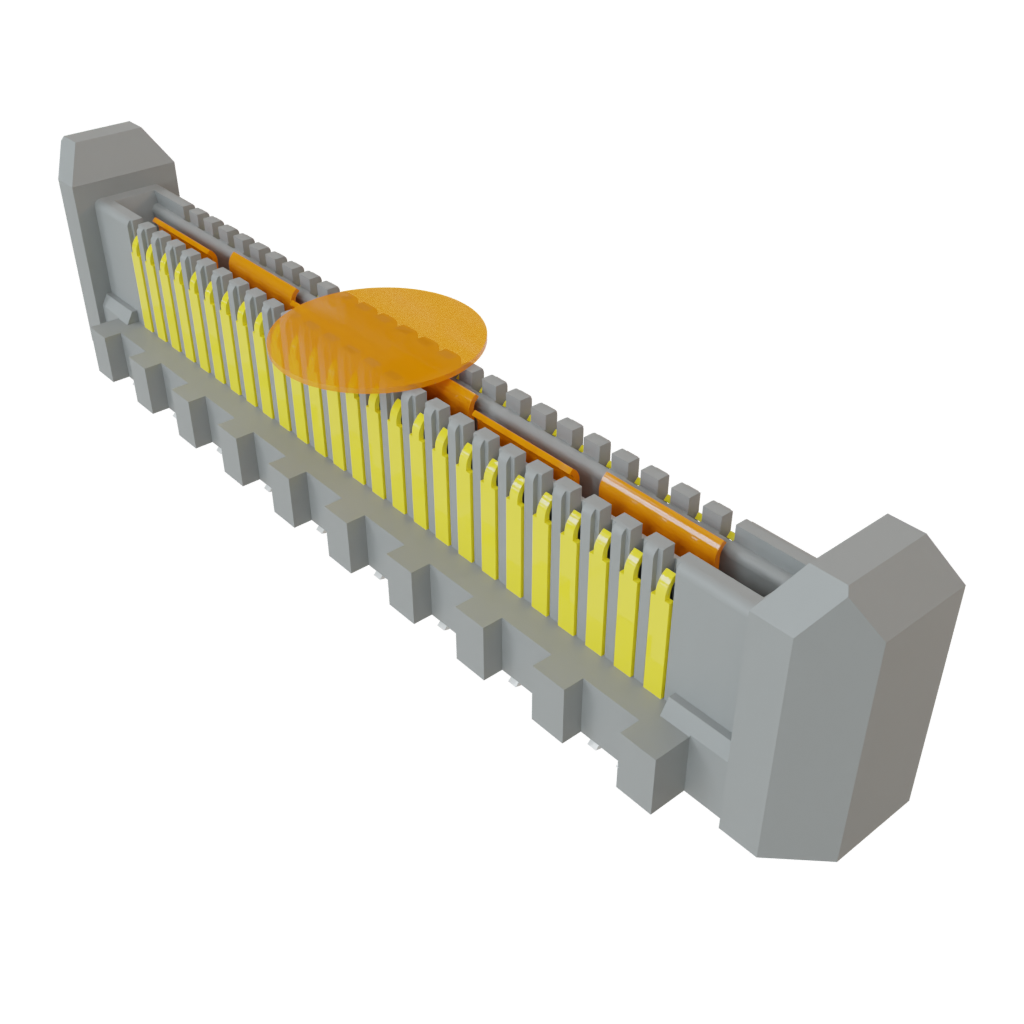

Board to Board & Mezzanine Connectors 0.80 mm Q Rate Slim Body Ground Plane Header

Datasheet:

QRM8-026-02.0-L-D-A-GP-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec QRM8-026-02.0-L-D-A-GP-K-TR

In Stock: 139

Stock:: 139 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$11.54	$11.54
	$10.67	$106.70
	$10.08	$252.00
	$9.72	$486.00
	$7.96	$796.00
Full Reel (Order in multiples of 450)
	$7.96	$3,582.00
	$7.76	$6,984.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	52 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Stack Height:	7 mm, 9 mm
Current Rating:	2.2 A
Voltage Rating:	215 VAC
Maximum Data Rate:	28 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	QRM8
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Data Rate:	28 Gbps
Mounting Style:	Mounting Edge
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	450
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Q Rate, Edge Rate

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

QRM8-026-02.0-L-D-A-GP-K-TR Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536690000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
