SEAF-20-01-L-06-2-RA-TR

Name: Samtec SEAF-20-01-L-06-2-RA-TR
Brand: Samtec
SKU: 200-SEAF2001L062RATR
Price: 17.61 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAF2001L062RATR

Mfr. No:

SEAF-20-01-L-06-2-RA-TR

Mfr.:

Samtec

Description:

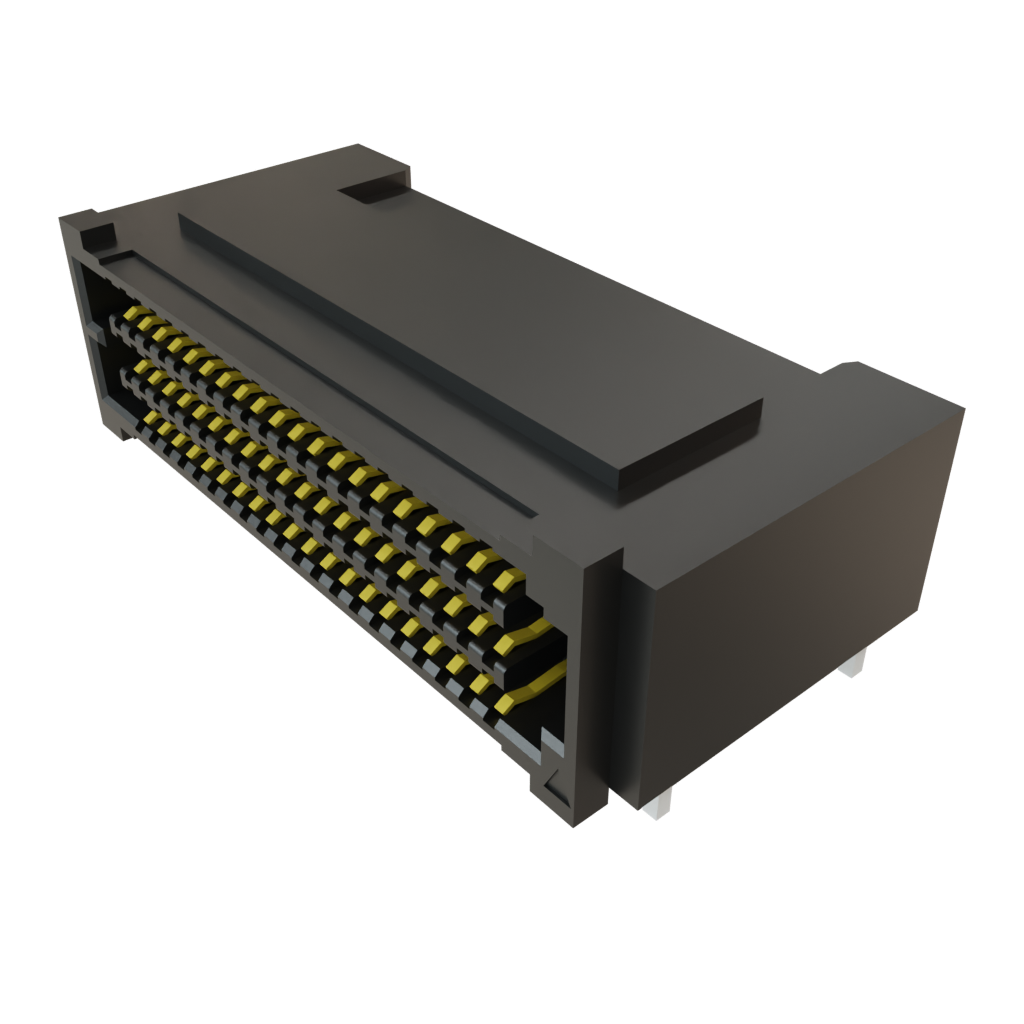

Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Socket

Datasheet:

SEAF-20-01-L-06-2-RA-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAF-20-01-L-06-2-RA-TR

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 4 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$17.61	$17.61
	$16.68	$166.80
	$16.06	$401.50
	$15.67	$783.50
	$12.78	$1,278.00
Full Reel (Order in multiples of 150)
	$12.78	$1,917.00
	$12.46	$5,607.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	120 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	6 Row
Termination Style:	Solder
Mounting Angle:	Right Angle
Stack Height:	7 mm
Current Rating:	2.7 A
Voltage Rating:	240 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAF-RA
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	150
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
