SEAM8-30-S05.0-S-08-3

Name: Samtec SEAM8-30-S05.0-S-08-3
Brand: Samtec
SKU: 200-SEAM830S5-S-083
Price: 28.18 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAM830S5-S-083

Mfr. No:

SEAM8-30-S05.0-S-08-3

Mfr.:

Samtec

Description:

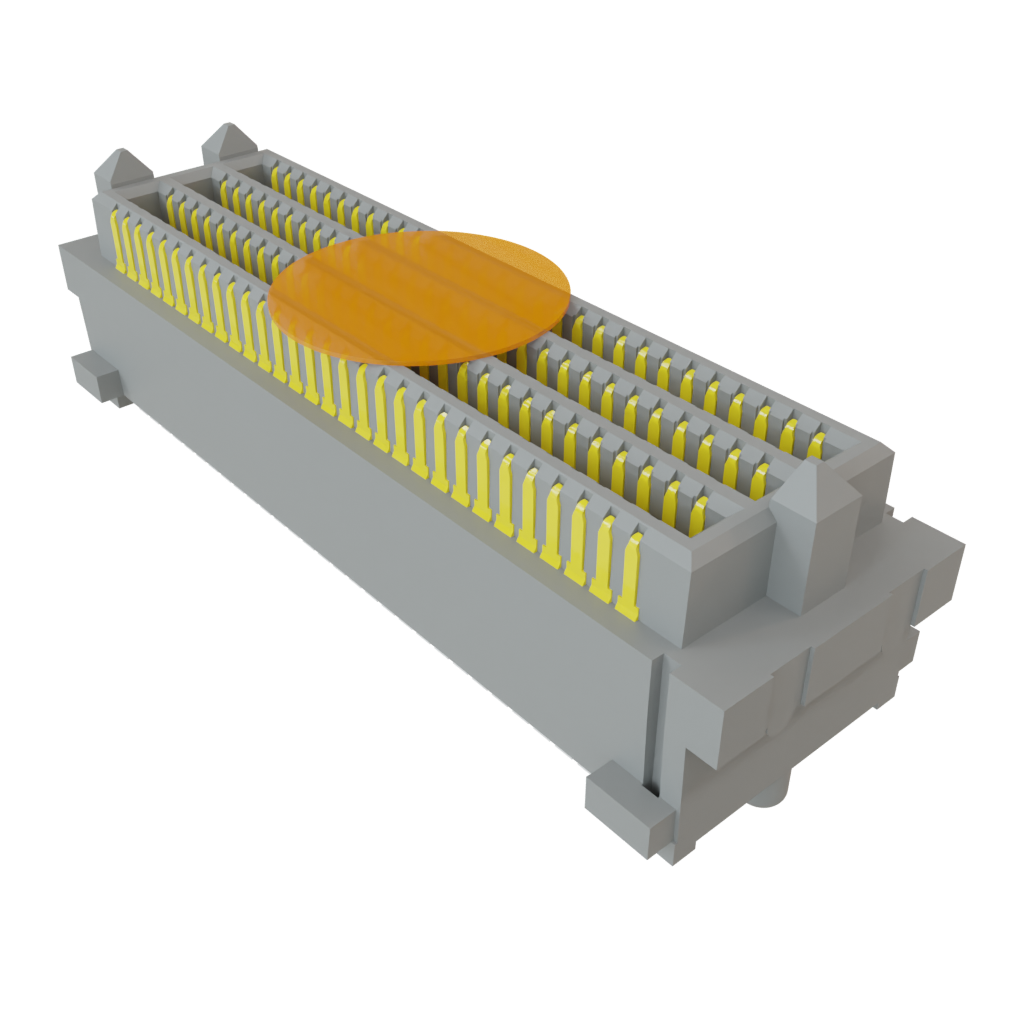

Board to Board & Mezzanine Connectors 0.80 mm SEARAY High-Speed High-Density Open-Pin-Field Array Terminal

Datasheet:

SEAM8-30-S05.0-S-08-3 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAM8-30-S05.0-S-08-3

In Stock: 760

Stock:: 760 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$28.18	$28.18
	$26.68	$266.80
	$25.68	$642.00
	$25.06	$1,253.00
	$20.44	$2,044.00
Full Reel (Order in multiples of 175)
	$20.44	$3,577.00
	$19.93	$6,975.50

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Plugs
Number of Positions:	240 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	8 Row
Termination Style:	Solder
Mounting Angle:	Straight
Current Rating:	1.3 A
Maximum Data Rate:	56 Gbps
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAM8
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Data Rate:	56 Gbps
Mounting Style:	PCB Mount
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	175
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

Conflict Material Declaration (Spreadsheet)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
BRHTS:: 85366990
ECCN:: EAR99
