SMB7H-P-C-HN-RA-CA3

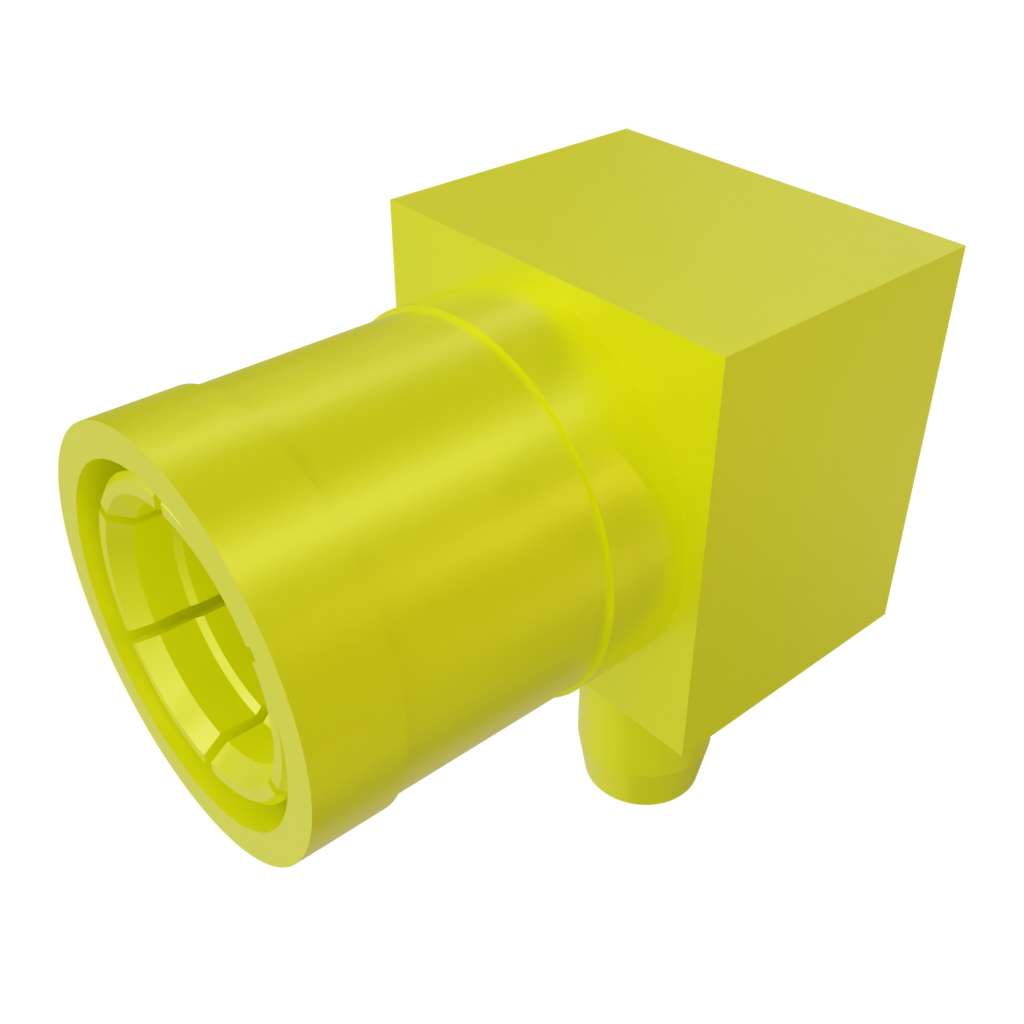

Name: Samtec SMB7H-P-C-HN-RA-CA3
Brand: Samtec
SKU: 200-SMB7H-PCHNRACA3
Price: 8.34 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SMB7H-PCHNRACA3

Mfr. No:

SMB7H-P-C-HN-RA-CA3

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors N/A

Datasheet:

SMB7H-P-C-HN-RA-CA3 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SMB7H-P-C-HN-RA-CA3

In Stock: 8

Stock:: 8 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 9 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$8.34	$8.34
	$7.22	$180.50
	$6.11	$305.50
	$5.04	$504.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
RF Series:	SMB
Impedance:	75 Ohms
Maximum Frequency:	4 GHz
Termination Style:	Solder
Polarity:	Standard
Packaging:	Bulk
Body Material:	Brass
Brand:	Samtec
Contact Material:	Brass
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Frequency:	4 GHz
Maximum Operating Temperature:	+ 165 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	SMB7H
Factory Pack Quantity:	1
Subcategory:	RF Interconnects
Voltage Rating:	335 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SMB7H-P-C-HN-RA-CA3 Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

CNHTS:: 8536901100
CAHTS:: 8536690010
USHTS:: 8536694010
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

Low Frequency RF Cables & Interconnects
