TFM-140-01-L-D-LC

Name: Samtec TFM-140-01-L-D-LC
Brand: Samtec
SKU: 200-TFM14001LDLC
Price: 7.79 USD
Availability: InStock

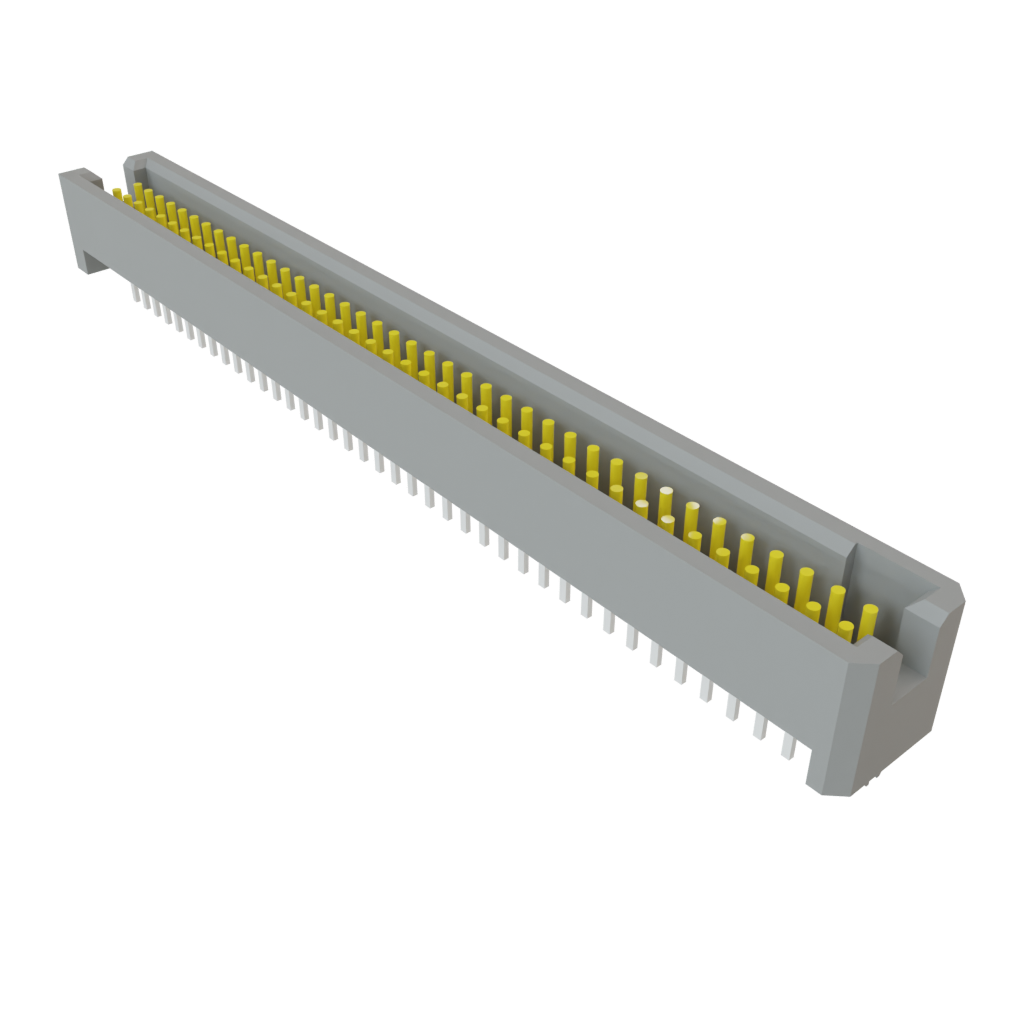

Images are for reference only
See Product Specifications

Mouser No:

200-TFM14001LDLC

Mfr. No:

TFM-140-01-L-D-LC

Mfr.:

Samtec

Description:

Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips

Datasheet:

TFM-140-01-L-D-LC Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TFM-140-01-L-D-LC

In Stock: 65

Stock:: 65 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$7.79	$7.79
	$7.30	$73.00
	$6.80	$204.00
	$6.37	$318.50
	$5.87	$587.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Header
Number of Positions:	80 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Mounting Style:	Through Hole
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Series:	TFM
Tradename:	Tiger Eye
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	3.2 A
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	10
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 VAC
Unit Weight:	1.753 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.

Tiger Eye™ TFM .050" (1.27mm) Pitch Terminal Strip

Samtec Tiger Eye™ TFM Series .050" (1.27mm) Pitch Terminal Strips are designed for micro rugged, high-reliability, high-cycle applications. Samtec Tiger Eye contains multi-finger, heat-treated, Beryllium Copper (BeCu) contacts designed for rugged environments. The connectors are available in vertical, right-angle, and horizontal orientations and through-hole or surface mount termination. Optional alignment pin, locking clip, dual screw-down, or weld tab are available for design flexibility.
