TSM-105-01-L-DV-009-P-TR

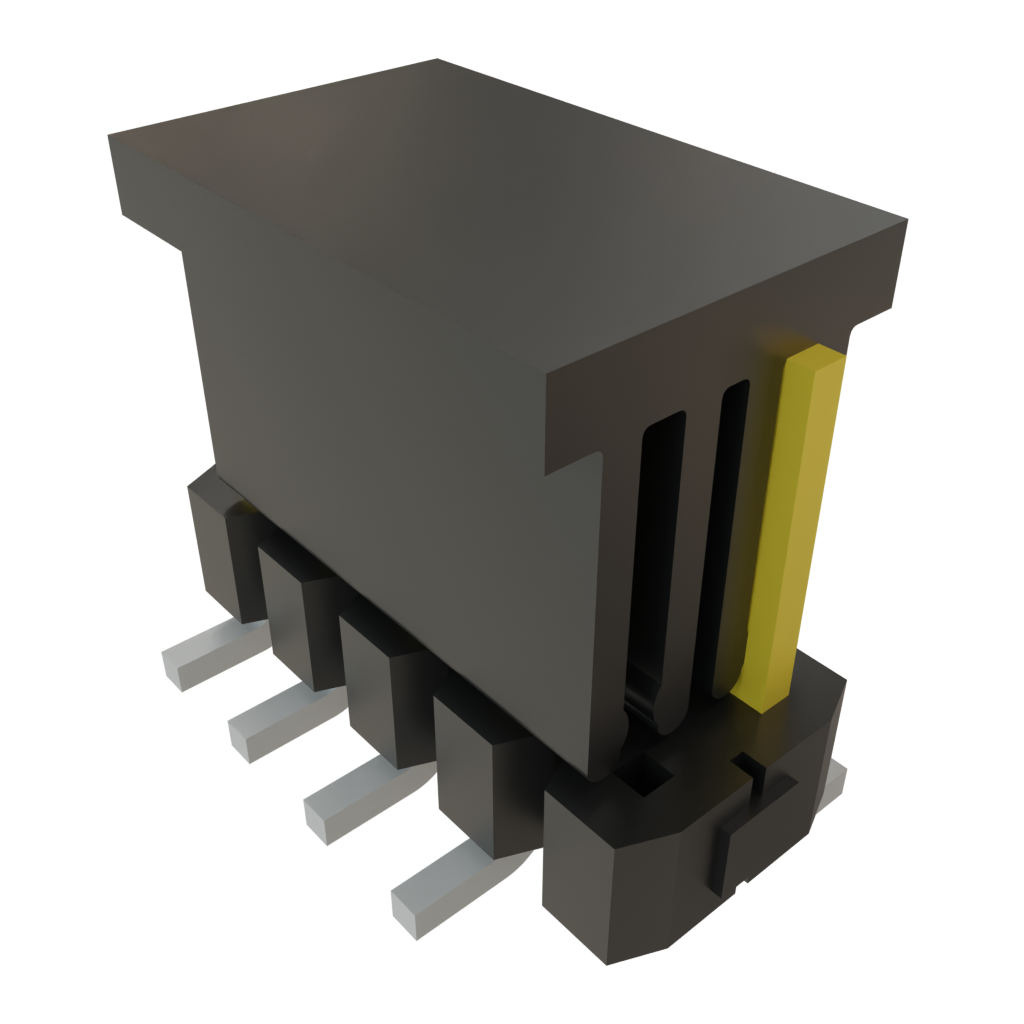

Name: Samtec TSM-105-01-L-DV-009-P-TR
Brand: Samtec
SKU: 200-TSM10501LDV009PT
Price: 1.81 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-TSM10501LDV009PT

Mfr. No:

TSM-105-01-L-DV-009-P-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Surface Mount Terminal Strip
