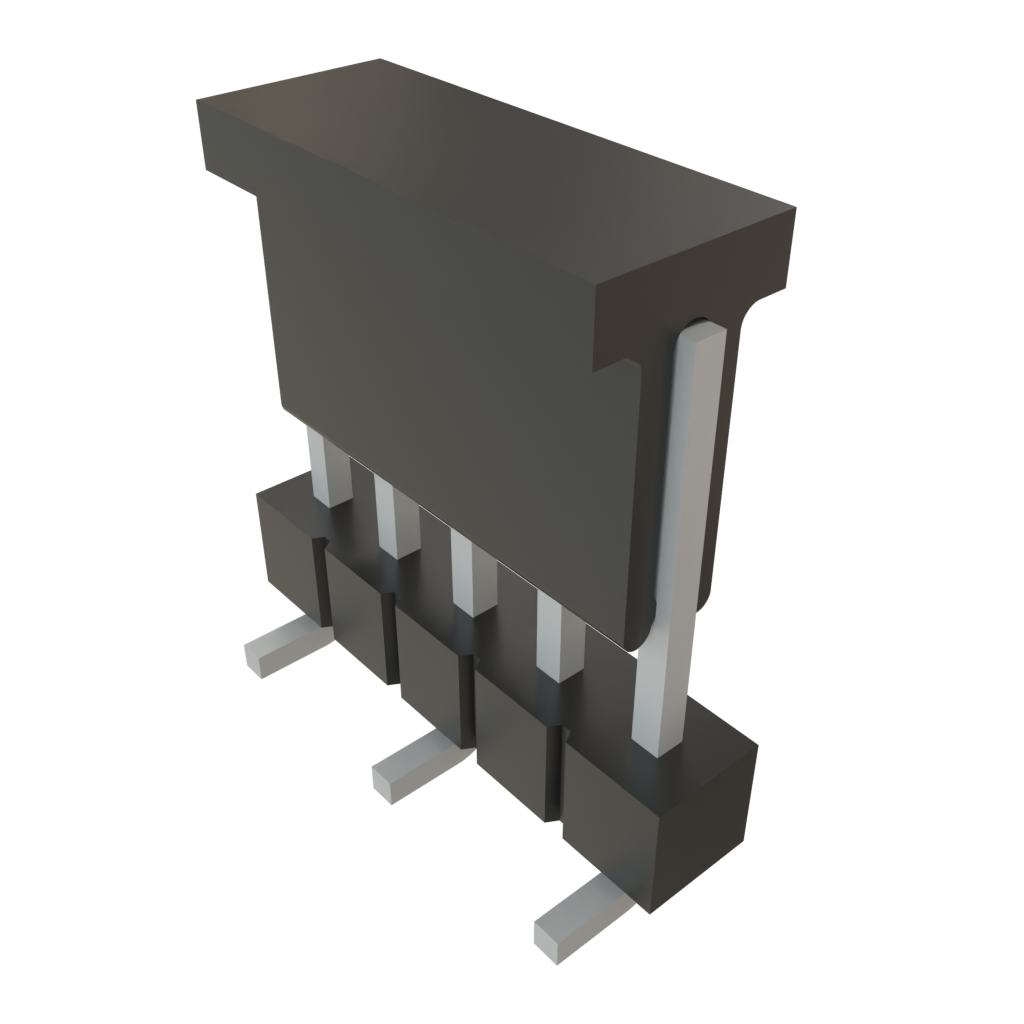

TSM-105-02-T-SV-P-TR

Name: Samtec TSM-105-02-T-SV-P-TR
Brand: Samtec
SKU: 200-TSM10502TSVPTR
Price: 0.95 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-TSM10502TSVPTR

Mfr. No:

TSM-105-02-T-SV-P-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Surface Mount Terminal Strip

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TSM-105-02-T-SV-P-TR
