851-06RC12-10PW50

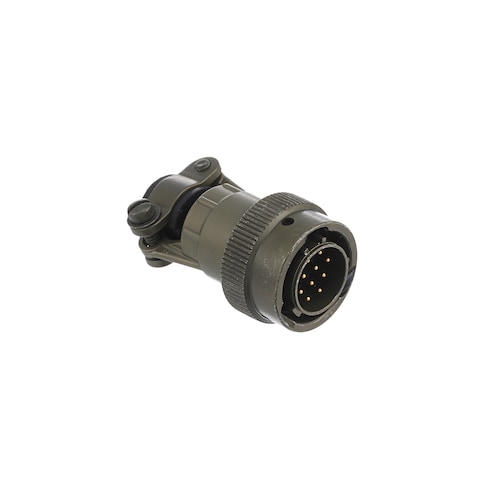

Name: Souriau 851-06RC12-10PW50
Brand: Souriau
SKU: 649-85106RC1210PW50
Price: 99.19 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

649-85106RC1210PW50

Mfr. No:

851-06RC12-10PW50

Mfr.:

Souriau

Description:

Circular MIL Spec Connector

Datasheet:

851-06RC12-10PW50 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 8

Stock:: 8 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$99.19	$99.19
	$84.41	$844.10
	$84.40	$2,532.00
	$81.60	$4,080.00
	$77.12	$7,712.00
250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Souriau
Product Category:	Circular MIL Spec Connector
Product:	Plugs
Shell Style:	Straight
MIL Type:	MIL-DTL-26482 I
Termination Style:	Crimp
Mounting Style:	Cable
Series:	851
Brand:	Souriau
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	FR
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Factory Pack Quantity:	10
Subcategory:	Circular Connectors
Part # Aliases:	85106RC1210PW50

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

851-06RC12-10PW50 Datasheet (PDF)

USHTS:: 8536694020
TARIC:: 8536699099
ECCN:: EAR99

38999 & 26482 Series Mil-Spec Circular Connectors

Souriau Mil-Spec Circular Connectors 38999 Series I, II, and III, and 26482 Series I and II offer a complete range of standard and derived circular connectors for harsh environments. Suitable for military, railway, and extreme industrial applications, these connectors are based on the MIL-DTL38999 and MIL-DTL-26482 standards. The product lineup includes micro, QPL, hermetics, high-density, and high-speed versions.

851 Connectors

SOURIAU 851 Connectors feature a positive bayonet coupling mechanism to ensure a reliable mechanical and electrical connection between mating halves. A helical locking ring on the plug couples with three dowel pegs on the receptacle for rapid locking. The orientation and location are confirmed by a system of five raised keys on the plugs, which couple with corresponding slots on the receptacles. Connectors with different angular positioning of the insulator relative to the shell can be provided to prevent mating of adjacent connectors with the same contact arrangements.
