1-174955-1

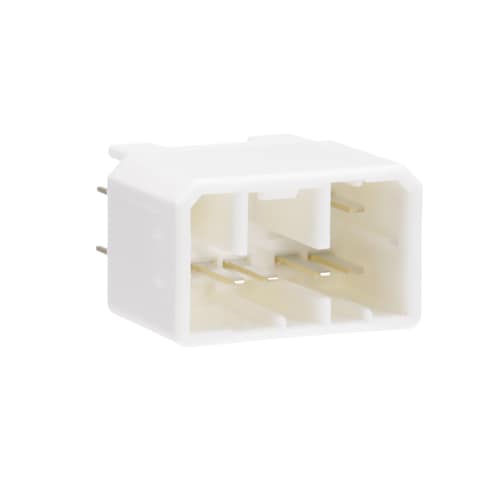

Name: TE Connectivity 1-174955-1
Brand: TE Connectivity / AMP
SKU: 571-1-174955-1
Price: 2.82 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-174955-1

Mfr. No:

1-174955-1

Mfr.:

TE Connectivity / AMP

Description:

Automotive Connectors 070MLC CAP ASY V 8P

Datasheet:

1-174955-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1-174955-1

In Stock: 1,017

Stock:: 1,017 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$2.82	$2.82
	$2.81	$28.10
	$2.30	$57.50
	$1.76	$167.20
	$1.72	$490.20
	$1.63	$929.10
	$1.58	$1,651.10
	$1.57	$4,027.05
	$1.53	$7,703.55

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Headers
Number of Positions:	8 Position
Pitch:	3.5 mm (0.138 in)
Gender:	Pin (Male)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Contact Plating:	Tin
Color:	White
Series:	.070 MULTILOCK
Packaging:	Tube
Brand:	TE Connectivity / AMP
Contact Gender:	Pin (Male)
Contact Material:	Brass
Contact Type:	Receptacle
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Current Rating:	14 A
Housing Material:	Polybutylene Terephthalate (PBT)
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 30 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	95
Subcategory:	Automotive Connectors
Tradename:	MULTILOCK
Type:	Receptacle
Unit Weight:	6.830 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-174955-1 Datasheet

EOL

Product Change Notification (PDF)

Images

PCN

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

.070 MULTILOCK Connectors

TE Connectivity's (TE) .070 MULTILOCK Series is designed to be a highly reliable high-density connector system for wire-to-wire and wire-to-board applications in the automotive industry. The contacting points of the receptacle are designed to be well protected, ensuring reliability. The contacts for the TE .070 MULTILOCK Series are available in pre-tin or selective gold finishing, and the connectors can accept a wire range from 24-16AWG. The connector housings are offered with a variation of positions ranging from 2-42.

MULTILOCK Connector System
