1-292215-0

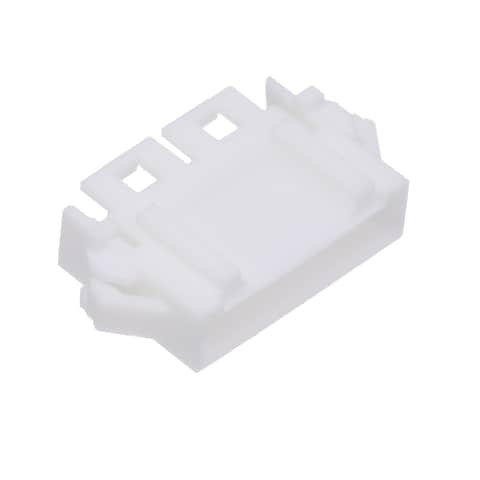

Name: TE Connectivity 1-292215-0
Brand: TE Connectivity / AMP
SKU: 571-1-292215-0
Price: 1.22 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-292215-0

Mfr. No:

1-292215-0

Mfr.:

TE Connectivity / AMP

Description:

Headers & Wire Housings 10 POS POST HDR 1.5mm

Datasheet:

1-292215-0 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 335

Stock:: 335 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 335 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.22	$1.22
	$1.04	$10.40
	$0.884	$88.40
	$0.778	$466.80
	$0.741	$889.20
	$0.738	$2,214.00
	$0.682	$3,682.80

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	10 Position
Pitch:	1.5 mm (0.059 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	Mini CT
Tradename:	Common Termination
Application:	Wire-to-Panel, Signal
Wire Gauge:	28 AWG to 24 AWG
Minimum Operating Temperature:	- 30 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	TE Connectivity / AMP
Contact Material:	Brass
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	2 A
Housing Colour:	Natural
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	600
Subcategory:	Headers & Wire Housings
Voltage Rating:	50 V
Unit Weight:	638 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-292215-0 Datasheet (PDF)

Images

RoHS Certificate (PDF)

CNHTS:: 8547200000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Mini CT Connectors

TE Connectivity / AMP Mini CT Connectors are super-miniature, wire-to-board and wire-to-wire connections using panel-mount intermediary post headers. From 2 to 20 positions, applicable wire sizes AWG28-26, the Mini CT Connectors are used for harness-making by AMP high-speed crimping machines. The Tyco Electronics / AMP Mini CT Connectors consist of wire-mount receptacle connectors and a variety of post headers and two-row headers. The post headers include one-row type headers (DIP, SMT, intermediary panel-mount type) and two-row type headers (DIP, intermediary panel-mount type). Two-row type post headers incorporate two receptacle connectors in a holder.
