1-84982-8

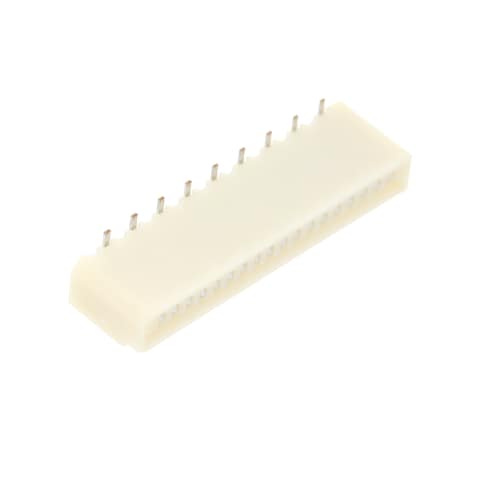

Name: TE Connectivity 1-84982-8
Brand: TE Connectivity / AMP
SKU: 571-1-84982-8
Price: 0.91 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-84982-8

Mfr. No:

1-84982-8

Mfr.:

TE Connectivity / AMP

Description:

FFC & FPC Connectors 18P 1.00MM VERT SMD

Datasheet:

1-84982-8 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1-84982-8

In Stock: 8,665

Stock:: 8,665 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 9 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 8665 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 800)

Cut Tape

MouseReel™ (+$7.00)

Pricing (USD)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	$0.918	$0.92
	$0.779	$7.79
	$0.696	$17.40
	$0.662	$66.20
	$0.621	$155.25
	$0.578	$289.00
Full Reel (Order in multiples of 800)
	$0.536	$428.80
	$0.516	$1,238.40
	$0.504	$2,419.20

† A MouseReel™ fee of $7.00 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	FFC & FPC Connectors
RoHS:
Product:	Board Mount
Number of Positions:	18 Position
Pitch:	1 mm
Termination Style:	SMD/SMT
Mounting Angle:	Vertical
Contact Plating:	Tin
Current Rating:	1 A
Series:	FFC
Minimum Operating Temperature:	- 20 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	TE Connectivity / AMP
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Gender:	Female
Housing Material:	Nylon
Product Type:	FFC & FPC Connectors
Factory Pack Quantity:	800
Subcategory:	FFC & FPC Connectors
Unit Weight:	10 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-84982-8 Datasheet (PDF)

Images

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

FFC & FPC Connectors

TE Connectivity's (TE) Flat Flexible Cable (FFC) and Flexible Printed Circuit (FPC) Connectors include an expansive selection of high-density board-to-board, cable-to-board, and cable-to-cable connectors. FFC connectors enable the high-speed sequential application of multiple-crimp contacts for the lowest applied cost. This low-profile series offers single- or double-row housings, plain or latch versions, as well as pin, receptacle, card edge, or solder tab contacts. FPC connectors are ideal where small center spacing makes larger wire-to-board interconnects impractical. They are available in a variety of centerline spacing options with SMT or through-hole PCB termination. These low-profile connectors provide a cost-effective solution that requires no tooling. TE FFC and FPC Connectors are ideal for PCs, consumer electronics, smartphones, mobile phones, cameras, and more.

FFC Connectors

TE Connectivity's (TE) family of flat flexible cable (FFC) connectors include a wide variety of high-density board-to-board, cable-to-board, and cable-to-cable connectors designed for automated assembly. The family is composed of pin and receptacle housings on .100 [2.54] centerline contact spacing and receptacle housings on .050 [1.27] centerline contact spacing for efficient use of printed circuit board area. Receptacle housings not only mate with the pin housings, but also mate with an array of PC board headers from other TE Connectivity connector lines, including AMPMODU MTE, AMPMODU .0252 [0.642], AMPMODU System 50, and AMP-LATCH product families.
