106462-1

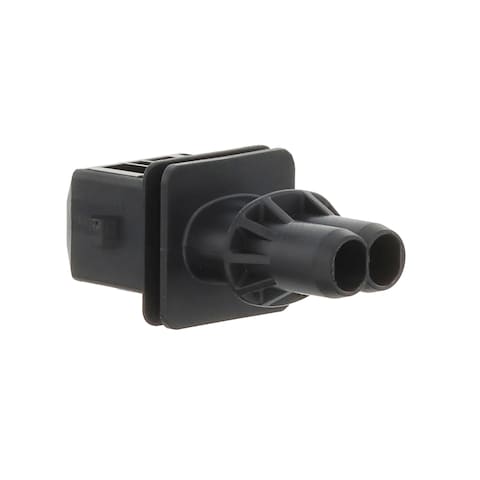

Name: TE Connectivity 106462-1
Brand: TE Connectivity / AMP
SKU: 571-106462-1
Price: 1 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-106462-1

Mfr. No:

106462-1

Mfr.:

TE Connectivity / AMP

Description:

Automotive Connectors FASTIN-FASTON 2P HSG

Datasheet:

106462-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 106462-1

In Stock: 4,023

Stock:: 4,023 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.00	$1.00
	$0.913	$9.13
	$0.846	$21.15
	$0.823	$82.30
	$0.744	$186.00
	$0.70	$350.00
	$0.672	$685.44
	$0.656	$1,338.24
	$0.654	$3,335.40

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	2 Position
Pitch:	5 mm (0.197 in)
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Quick Connect
Series:	Junior Timer
Brand:	TE Connectivity / AMP
Contact Gender:	Tab
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	BE
Housing Material:	Polybutylene Terephthalate (PBT)
Length:	19.7 mm
Locking Mechanism:	On the terminal
Mounting Angle:	Straight
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	1020
Subcategory:	Automotive Connectors
Tradename:	Timer
Type:	Terminal Housing
Width:	36.5 mm
Unit Weight:	4 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

106462-1 Datasheet

Images

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

CNHTS:: 8547200000
TARIC:: 8547200090
CAHTS:: 8536900020
USHTS:: 8538908180
JPHTS:: 853890000
KRHTS:: 8536909010
MXHTS:: 85369099
BRHTS:: 85369090
ECCN:: EAR99

Timer Interconnection System

TE Connectivity's (TE) Timer Interconnect System features contacts used extensively in the automotive industry. Each contact of this TE series consists of a flat receptacle, which mates with a flat tab. The receptacle has two respective four contact springs, which are independent of each other. Two-piece contacts with a steel top spring are predominantly. This two-piece contact design means that the electrical and mechanical properties are separated. One end of the contact body is either crimped to wire or soldered to a printed circuit board. The other end of the contact body mates with the matching tab.
