3-794682-8

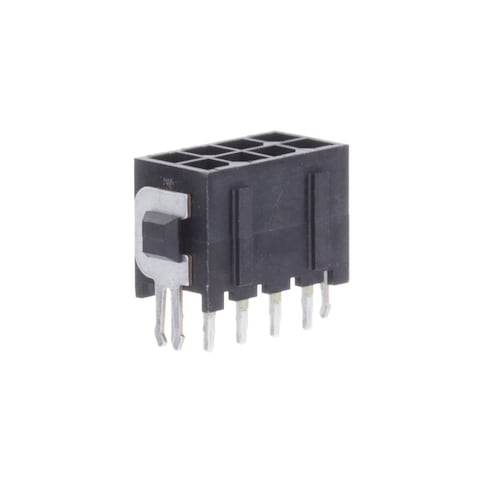

Name: TE Connectivity 3-794682-8
Brand: TE Connectivity / AMP
SKU: 571-3-794682-8
Price: 3.18 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-3-794682-8

Mfr. No:

3-794682-8

Mfr.:

TE Connectivity / AMP

Description:

Pin & Socket Connectors 2X4P PIN HDR 30 AU

Datasheet:

3-794682-8 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 3-794682-8

In Stock: 1,520

Stock:: 1,520 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$3.18	$3.18
	$2.29	$22.90
	$2.14	$214.00
	$1.93	$9,935.64

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Pin & Socket Connectors
RoHS:
Product:	Headers
Number of Positions:	8 Position
Number of Rows:	2 Row
Contact Gender:	Pin (Male)
Pitch:	3 mm
Termination Style:	Through Hole
Mounting Style:	PCB
Housing Material:	Nylon
Contact Material:	Brass
Contact Plating:	Tin
Voltage Rating:	250 V
Current Rating:	5 A
Series:	MATE-N-LOK
Packaging:	Tray
Tradename:	MATE-N-LOK
Brand:	TE Connectivity / AMP
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Gender:	Plug
Mounting Angle:	Vertical
Product Type:	Pin & Socket Connectors
Factory Pack Quantity:	234
Subcategory:	Pin & Socket Connectors
Unit Weight:	1.157 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

3-794682-8 Datasheet

Images

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

CNHTS:: 8536901900
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 85369099
BRHTS:: 85366990
ECCN:: EAR99

MATE-N-LOK Connectors

TE Connectivity's (TE) MATE-N-LOK Connectors provide a highly reliable and cost-effective means of grouping multiple-lead connections. These connectors are ideal for computers, computer / peripheral equipment, business machines, entertainment centers, appliances, and other sophisticated commercial equipment. The TE MATE-N-LOK family of connectors offers the design and features to fulfill modern industry requirements.
