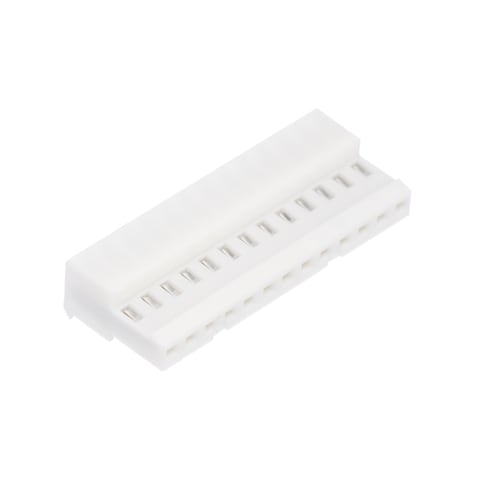

4-640441-3

Name: TE Connectivity 4-640441-3
Brand: TE Connectivity / AMP
SKU: 571-4-640441-3
Price: 2.16 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-4-640441-3

Mfr. No:

4-640441-3

Mfr.:

TE Connectivity / AMP

Description:

Headers & Wire Housings REC 13P C/E 24AWG W/O TABS

Datasheet:

4-640441-3 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 4-640441-3

In Stock: 348

Stock:: 348 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 28 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 348 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$2.16	$2.16
	$1.82	$18.20
	$1.63	$40.75
	$1.56	$156.00
	$1.47	$367.50
	$1.38	$690.00
	$1.27	$1,270.00
	$1.23	$3,075.00
	$1.22	$6,100.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	13 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	IDC
Contact Gender:	Socket (Female)
Contact Plating:	Tin
Series:	MTA-100
Tradename:	MTA
Application:	Wire-to-Board
Wire Gauge:	24 AWG
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	TE Connectivity / AMP
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	5 A
Housing Colour:	White
Housing Material:	Nylon
Latching Type:	Ramp Lock
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	500
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 VAC
Unit Weight:	2.417 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

4-640441-3 Datasheet

Images

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

MTA Connector System

TE Connectivity's (TE) Mass Termination Assembly (MTA) Connector System is a wire-to-board and wire-to-wire system based on insulation displacement contact (IDC) technology. MTA 100 connectors have contacts in a single row on .100 inch (2.54mm) centers, while MTA 156 connector contacts are in a single row on .156 inch (3.96mm) centers. These connectors provide wire feed-through capability for daisy-chain applications. IDCs are used to terminate a range of conductor sizes. Ribbon cable can also be terminated when the appropriate receptacle assembly and strain relief cover are used. Header assemblies for board-mount applications include right-angle and vertical-mount products, which are available in through-hole and surface-mount configurations. TE MTA connectors are ideal for household appliances, fitness equipment, garage door openers, gasoline pumps, coin changers, and vending machines.

Industrial Machine Solutions

TE Connectivity's (TE) Industrial Machine Solutions offer reliable solutions for safer, smarter, productive, and more connected machinery. The product offering meets the needs for integration of data connectivity, miniaturized components, product quality, and reliability. These solutions offer IP-rated protective sealing, miniaturization, ease of installation, and ergonomic designs for safety. TE Industrial Machine Solutions meet the challenges engineers are facing when designing for smarter, more connected machinery.
