2204585-4

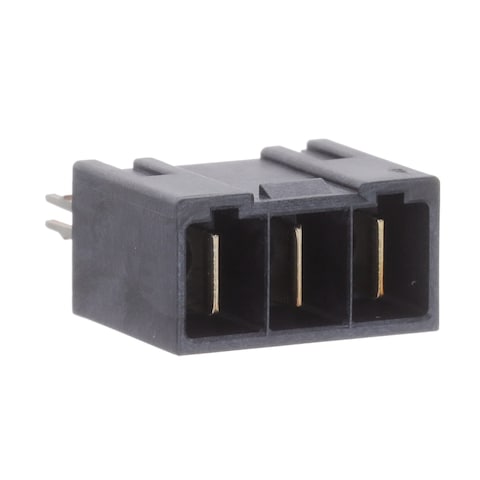

Name: TE Connectivity 2204585-4
Brand: TE Connectivity / Alcoswitch
SKU: 571-2204585-4
Price: 3.94 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-2204585-4

Mfr. No:

2204585-4

Mfr.:

TE Connectivity / Alcoswitch

Description:

Heavy Duty Power Connectors 3P VERT HEADER SOLDER,STD

Datasheet:

2204585-4 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / Alcoswitch 2204585-4

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 7500 Multiples: 7500

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

This Product Ships FREE

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$3.94	$29,550.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Heavy Duty Power Connectors
RoHS:
Series:	ELCON Mini
Product:	Headers
Current Rating:	35 A
Number of Positions:	3 Position
Termination Style:	Solder
Voltage Rating:	400 V
Insert/Contact Gender:	Pin (Male)
Housing Material:	Liquid Crystal Polymer (LCP)
Contact Plating:	Silver
Contact Material:	Copper Alloy
Tradename:	ELCON
Brand:	TE Connectivity / Alcoswitch
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Maximum Operating Temperature:	+ 130 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Mounting Style:	Press Fit
Number of Rows:	1 Row
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	150
Subcategory:	Power Connectors
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2204585-4 Datasheet

RoHS Certificate (PDF)

CNHTS:: 8536901900
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

ELCON Mini Power Connectors & Cable Assemblies

TE Connectivity's (TE) ELCON Mini Power Connectors and Cable Assemblies support up to 40A current per contact and 400V_AC/DC voltage rating in an 8mm height form factor. ELCON Mini features a high-reliability interface and low resistance (0.3mΩ maximum contact resistance). These power connectors offer positive metal latch retention (supporting pull forces up to 100N) and optional coding contacts for sense-and-detect functionality. TE's ELCON Mini connectors also provide press-fit attachment options, original solder tail parts, multiple position configurations, and right-angle or vertical mounting types. ELCON Mini cable assemblies offer standard or high-flex designs for easier routability. Typical applications for the ELCON Mini include telecom base stations, power distribution, power supplies, servers, switches, routers, storage systems, and high-performance computing.
