DRC12-70PC

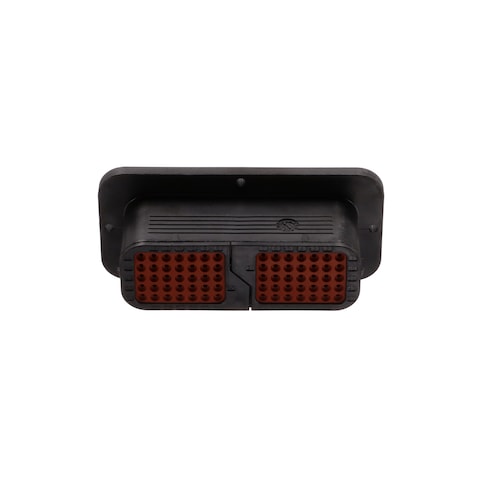

Name: TE Connectivity DRC12-70PC
Brand: TE Connectivity / DEUTSCH
SKU: 571-DRC12-70PC
Price: 44.96 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-DRC12-70PC

Mfr. No:

DRC12-70PC

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors 70P RECP ASM

Datasheet:

DRC12-70PC Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH DRC12-70PC

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$44.96	$44.96
	$36.40	$364.00
	$34.64	$692.80
	$33.68	$2,020.80
	$32.48	$3,248.00
	$30.49	$7,927.40

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	70 Position
Pitch:	5.49 mm (0.216 in)
Gender:	Receptacle (Female)
Mounting Style:	Flange
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	14 AWG
Color:	Black
Series:	DRC
Application:	Wire to Wire
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	13 A
Flammability Rating:	UL 94
Height:	58.93 mm
Housing Material:	Polyphenylene Sulfide (PPS)
Ingress Protection:	IP68
Length:	44.63 mm
Locking Mechanism:	Integrated in Housing
Material:	Plastic
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	5 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	20
Subcategory:	Automotive Connectors
Type:	Receptacle
Voltage Rating:	250 VDC
Width:	126.82 mm
Wire Gauge Range:	14 AWG to 20 AWG
Unit Weight:	193.300 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DRC12-70PC Datasheet (PDF)

Images

PCN

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

DRC Automotive Connectors & Accessories

TE Connectivity's / DEUTSCH DRC Automotive Connectors and Accessories offer insert arrangements of 24, 40, 50, 60, 64, 70, and 76 cavities. These environmentally sealed connectors accept 12, 16, and 20-size contacts. The DRC connectors provide in-line, flange mount, and PCB mounting options. These automotive connectors come with an IP68 rating and an operating temperature range of -55°C to +125°C. The DRC connectors feature 1000MΩ minimum at 25°C insulation resistance and current leakage less than 2mA at 1500V AC dielectric withstanding voltage. These connectors provide no electrical or mechanical defect after 100 cycles of engagement and disengagement. The DRC connectors are moisture-resistant and fluid-resistant.
