770669-1

Name: TE Connectivity 770669-1
Brand: TE Connectivity
SKU: 571-770669-1
Price: 10.82 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-770669-1

Mfr. No:

770669-1

Mfr.:

TE Connectivity

Description:

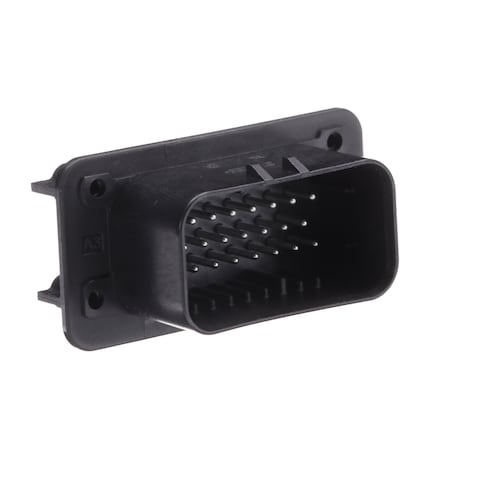

Automotive Connectors 23 POS AMPSEAL ASSY SNAP-IN

Datasheet:

770669-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 770669-1

In Stock: 8

Stock:: 8 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$10.82	$10.82
	$9.47	$94.70
	$9.39	$234.75

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Headers
Number of Positions:	23 Position
Pitch:	4 mm (0.157 in)
Gender:	Pin (Male)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Contact Plating:	Tin
Wire Gauge Min:	20 AWG
Wire Gauge Max:	16 AWG
Color:	Black
Series:	AMPSEAL
Brand:	TE Connectivity
Contact Gender:	Pin (Male)
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Current Rating:	8 A
Features:	Ampseal
Insulation:	Insulated
Material:	Plastic
Mounting Angle:	Right Angle
Number of Rows:	3 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	40
Subcategory:	Automotive Connectors
Type:	Quick Connect
Voltage Rating:	250 VAC
Wire Gauge Range:	16 AWG to 20 AWG
Unit Weight:	29.845 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

770669-1 Datasheet (PDF)

Images

PCN

RoHS Certificate (PDF)

CNHTS:: 8536901100
TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

AMPSEAL Sealed Connectors

TE Connectivity's (TE) AMPSEAL Connectors provide rugged reliability, easy use, and superior environmental sealing. The connectors include cable plugs and PCB-mount headers engineered to withstand extreme temperatures and moisture, including high-temperature underhood applications. The pre-assembled receptacle housing connector features built-in contact sealing and an integral interfacial seal that protects mated connectors. TE AMPSEAL Connectors applications include driver information, powertrain systems, convenience, safety and security systems, and body and chassis systems.
