966870-1

Name: TE Connectivity 966870-1
Brand: TE Connectivity
SKU: 571-966870-1
Price: 11.26 USD
Availability: InStock

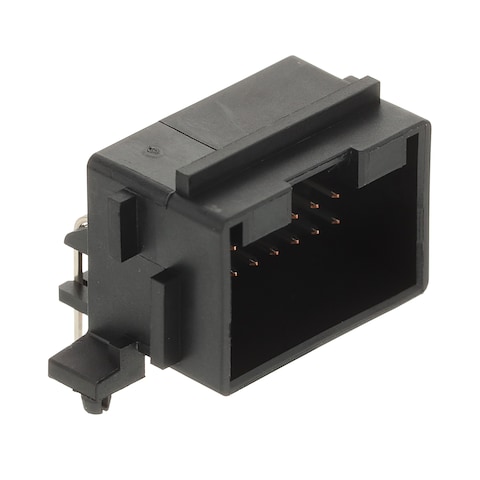

Images are for reference only
See Product Specifications

Mouser No:

571-966870-1

Mfr. No:

966870-1

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings MOD2 ST-WANNE 2X 8P

Datasheet:

966870-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 966870-1

In Stock: 353

Stock:: 353 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 28 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$11.26	$11.26
	$10.13	$253.25
	$9.91	$495.50
	$9.59	$959.00
	$6.92	$1,730.00
	$5.97	$3,343.20

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	16 Position
Pitch:	2.5 mm (0.098 in)
Number of Rows:	2 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	AMPMODU MOD II
Tradename:	AMPMODU
Application:	Wire-to-Board
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 110 C
Packaging:	Bulk
Brand:	TE Connectivity
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	HU
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	560
Subcategory:	Headers & Wire Housings
Unit Weight:	5.667 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

966870-1 Datasheet

Images

Models

966870-1 Symbol & Footprint by SnapMagic

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AMPMODU Interconnection System

TE Connectivity's (TE) AMPMODU Interconnection System provides connections with a unique modular concept, utilizing precision-formed receptacle contacts and mating posts. Mating of the post and receptacle contacts of this system is very tolerant. This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and anti-overstress stops.

AMPMODU MOD II Connectors

TE Connectivity's (TE) AMPMODU MOD II Connectors feature a 0.100" (2.54mm) pitch with shrouded and unshrouded headers in surface-mount and through-hole configurations. AMPMODU MOD II headers are available in single- or double-row configurations with 0.025" square posts and a current rating of 3A max per contact. TE AMPMODU MOD II headers are mateable with receptacle housings from the AMPMODU MOD IV and AMPMODU MTE product lines.
