Nisshinbo NJG1801K75 SPDT Switch GaAs MMIC
Nisshinbo NJG1801K75 SPDT Switch Gallium Arsenide (GaAs) Monolithic Microwave Integrated Circuit (MMIC) is suited for switching transmit/receive signals in 802.11 a/b/g/n/ac applications. The Nisshinbo NJG1801K75 features low insertion loss, highisolation, and high handling power. This switch exhibits wide frequency coverage up to6.0GHz and is packaged in an ultra-small and ultra-thin DFN6-75 package.
Features
- 0V to 3.0V typical control voltage range, 6.0V maximum
- Low insertion loss
- 0.35dB typical at f = 2.4GHz to 2.5GHz
- 0.45dB typical at f = 4.9GHz to 5.9GHz
- High isolation
- 28dB typical at f = 2.4GHz to 2.5GHz
- 30dB typical at f = 4.9GHz to 5.9GHz
- +31dBm maximum RF input power
- Ultra small and ultra thin DFN6-75 package, 1.0mm x 1.0mm x 0.375mm typical size
- Moisture Sensitivity Level (MSL) 1
- Halogen-free and RoHS-compliant
Applications
- 802.11 a/b/g/n/ac network applications
- Transmit/receive switching and path switching applications
Specifications
- 380mW maximum power dissipation
- Control voltages
- 1.8V to 5.0V high
- ±0.2V low
- 10µA maximum control current, 5µA typical
- 300ns maximum switching time, 100ns typical
- -40°C to +105°C operating temperature range

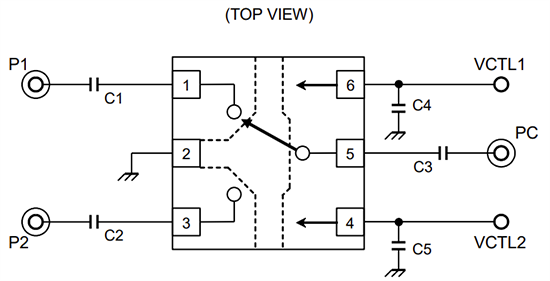

Application Circuit
Related Switch
Nisshinbo NJG1801BKGC-A Ultra-Wideband SPDT RF-Switch
An ultra-wideband SPDT switch for automotive suited for WiFi, BLUETOOTH®, and UWB applications.
